Description

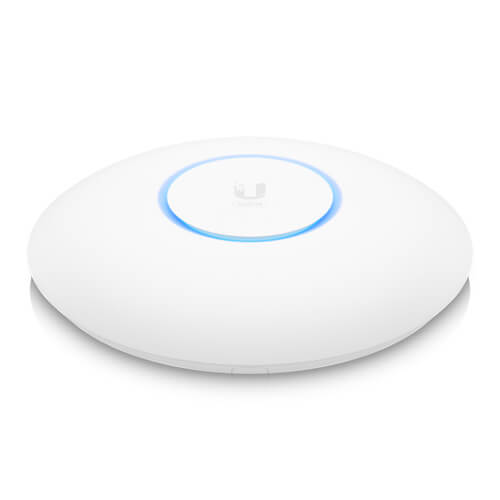

Ubiquiti UniFi Access Point WiFi 6 Pro
The Access Point WiFi 6 Pro (U6 Pro) is a powerful dual-band WiFi 6 access point ideal for home and office use. The U6 Pro can achieve an aggregate throughput rate of up to 5.3 Gbps with its 5 GHz (4×4 MIMO) and 2.4 GHz (2×2 MIMO) bands, allowing it to support over 300 simultaneously connected clients while maintaining a consistent, reliable Wi-Fi experience across your entire network. It can also isolate your guest traffic for optimal safety and speed. The U6 Pro also operates at full 4×4 MIMO with 160MHz channels to create high-capacity wireless uplinks and enable faster data transfer.
Mechanical
Dimensions : Ø197 x 35 mm (Ø7.76 x 1.38″)
Weight : Without mount: 460 g (1.01 lb), With mount: 600 g (1.32 lb)
Enclosure material: Plastic
Mounting material : SGCC steel
Weatherproofing : IP54
Hardware
Management interfaces : Ethernet, Bluetooth
Networking interface : (1) GbE RJ45 port
Button : Factory reset
LEDs : White/Blue
Power method : 802.3at PoE+
Power supply : UniFi PoE switch, 48V, 0.5A PoE adapter (not included)
Supported voltage : range 44 to 57VDC
Max. power consumption : 13W
Max. TX power : 2.4 GHz: 22 dBm, 5 GHz: 26 dBm
MIMO : 2.4 GHz: 2 x 2 (UL MU-MIMO), 5 GHz: 4 x 4 (DL/UL MU-MIMO)
Throughput rate : 2.4 GHz: 573.5 Mbps, 5 GHz: 4.8 Gbps
Antenna gain : 2.4 GHz: 4 dBi, 5 GHz: 6 dBi
Mounting : Wall/ceiling (included)
Operating temperature : -30 to 60° C (-22 to 140° F)
Operating humidity : 5 – 95% noncondensing
Certifications : CE, FCC, IC
Software
WiFi standards : 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
Wireless security : WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID : 8 per radio
VLAN : 802.1Q
Advanced QoS : Per-user rate limiting
Guest traffic isolation : Supported
Concurrent clients : 300+
Supported Data Rates
802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) : 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5) : 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) : 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
