Description

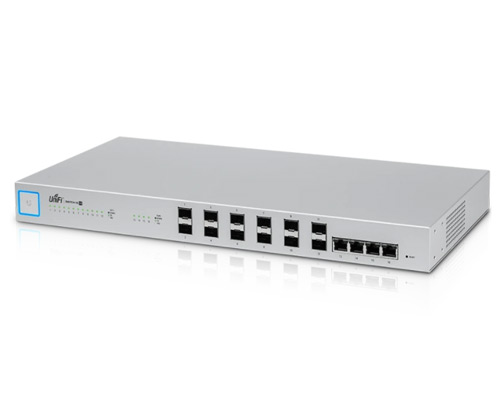

The UniFi Switch XG 16 is a fully managed, 10-gigabit aggregation switch that delivers robust performance and intelligent L2 switching.
The UniFi Switch XG 16 is the ideal aggregation switch for your core network.
Total Non-Blocking Line Rate : 160 Gbps
Switching Capacity : 320 Gbps
Forwarding Rate : 238.10 Mpps
Max. DC Power Consumption : 36W (excludes SFP/SFP+ modules)
Power Supply : AC/DC, Internal, 56W DC
Supported Voltage Range : AC: 100 to 240VAC, DC: 57 to 20VDC
Rack-Mount : Yes, 1U High
ESD/EMP Protection : Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration : ETSI300-019-1.4 Standard
LEDs Per Port : Speed/Link/Activity
Networking Interfaces : (12) 1/10 Gbps SFP+ Ethernet Ports, (4) 1/10 Gbps RJ45 Ethernet Ports
Management Interface : (1) RJ45 Serial Port, Ethernet In-Band
Operating Temperature : -5 to 40° C (23 to 104° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : CE, FCC, IC
