Description

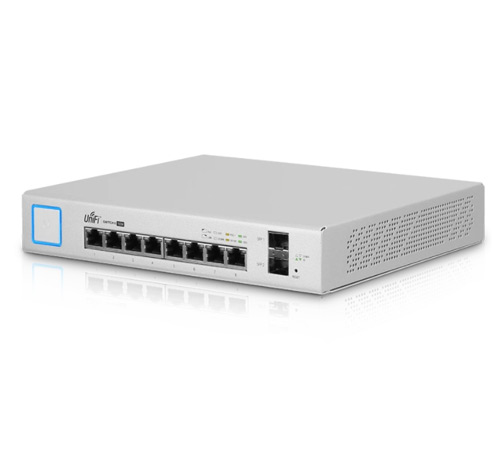

Expand and power your network with the UniFi® Switch 8 150W, part of the Ubiquiti Networks® UniFi Enterprise System.
The UniFi® Switch 8 150W is a fully managed PoE+ Gigabit switch, delivering robust performance and intelligent switching for enterprise networks.
The UniFi® Switch 8 150W offers the flexibility of (8) Gigabit RJ45 ports with auto-sensing PoE+ or 24V Passive PoE to power your UniFi access points and other PoE devices.
Additionally, two SFP ports provide uplink and fiber connectivity options capable of delivering speeds of up to 1 Gbps each.
The UniFi® Switch 8 150W supports up to 10 Gbps total, non-blocking line rate.
Networking Interfaces : (8) 10/100/1000 Mbps RJ45 Ports, (2) 1 Gbps SFP Ports
Management Interfaces : Ethernet In-Band
Power Method : 100-240VAC/50-60 Hz, Universal Input
Power Supply : AC/DC, Internal, 150W DC
Processor Specs : ARM Cortex-A9 400 MHz
Memory Information : 256MB DDR3
Code Storage : 32 MB NOR Flash
Line Rate : 10 Gbps, Non-Blocking
PoE Output (RJ45 Ports) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6), Passive 24V/0.7A 2-Pair (+4, 5; -7, 8)
ESD/EMP Protection : ± 24kV Air, ± 24kV Contact
Shock and Vibration : ETSI300-019-1.4 Standard
Operating Temperature : -5 to 45° C (23 to 113° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : CE, FCC, IC
PoE Interfaces : PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-), 24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE: 34.2W
Voltage Range 802.3at Mode: 50–57V
Max. Passive PoE Wattage per Port : 17W
24V Passive PoE Voltage Range : 20-27V
