Description

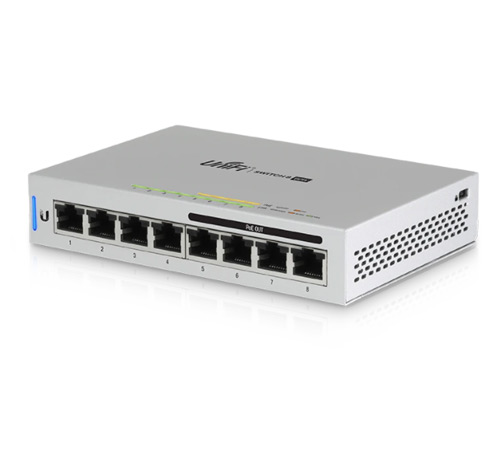

Expand and power your network with the UniFi® Switch 8 60W, part of the Ubiquiti Networks® UniFi Enterprise System.
The UniFi Switch 8 60W is a compact, fully managed 802.3af PoE Gigabit switch, delivering robust performance and intelligent switching for enterprise networks.
The UniFi Switch 8 60W offers the flexibility of (8) Gigabit Ethernet ports with (4) auto-sensing PoE ports to power your UniFi access points and other PoE devices.
The UniFi Switch 8 60W supports up to 8 Gbps total, non-blocking line rate, and up to 15W output per PoE port.
Networking Interfaces : (8) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces : (4) Ports 5, 6, 7, 8: IEEE 802.3af
Power Method : 48VDC, Max. 2A
Power Supply : External AC/DC Adapter: 48V, 1.25A
Max. Power Consumption : 12W (Excluding PoE Output)
Max. PoE Wattage per Port : 15.4W
PoE Output (Ports 5 to 8) : IEEE 802.3af 2-Pair (Pins 1, 2+; 3, 6-)
Line Rate : 8 Gbps, Non-Blocking
ESD/EMP Protection : ± 24kV Air, ± 24kV Contact
Operating Temperature : -5 to 45° C (23 to 113° F)
Operating Humidity : 5 to 95% Noncondensing
Certifications : CE, FCC, IC
