Description
Improved Noise Immunity

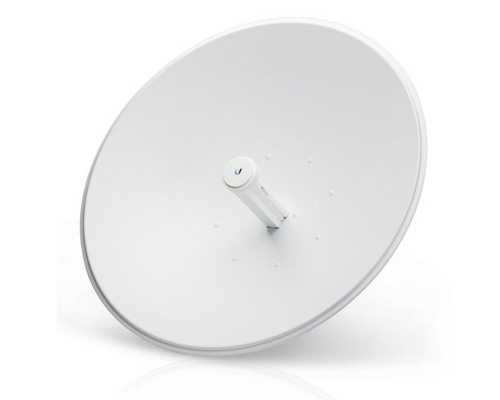

The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.
Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy
Dimensions : 620 x 620 x 386 mm (24.41 x 24.41 x 15.2″)
Weight : 6.4 kg (14.11 lbs)
Power Supply : 24V, 0.5A Gigabit PoE
Max. Power Consumption : 8.5W
Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range : 20-26VDC
Gain : 29 dBi
Networking Interface : (1) 10/100/1000 Ethernet Port
Processor Specs : Atheros MIPS 74Kc, 720 MHz
Memory : 128 MB DDR2, 16 MB Flash
LEDs : (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs : Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR : 1.6:1
Polarization : Dual Linear
Enclosure : Outdoor UV Stabilized Plastic
Mounting : Pole-Mount (Kit Included)
Wind Survivability : 200 km/h (125 mph)
ESD/EMP Protection : Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
Wireless Approvals : FCC, IC, CE
RoHS Compliance : Yes
Salt Fog Test : IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test : IEC 68-2-6
Temperature Shock Test : IEC 68-2-14
UV Test : IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test : ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
