Description
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
Dual Ethernet Connectivity

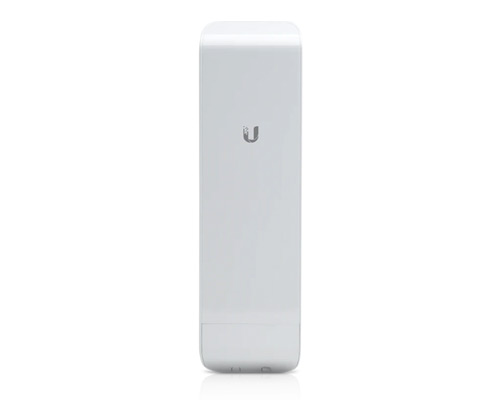

The NanoStationM provides a secondary Ethernet port with software-enabled PoE output for seamless IP video integration.
Intelligent PoE
The remote hardware reset circuitry of the NanoStationM allows the device to be remotely reset from the power supply location.
Dimensions : 294 x 31 x 80 mm | (11.57 x 1.22 x 3.15″)
Weight : 400 g | (14.11 oz)
Power Supply (PoE) 24V, 0.5A : 24V, 0.5A
Max. Power Consumption 5.5W: 8W
Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Frequency : 2412-2462 MHz
Gain : 10.4-11.2 dBi
Networking Interface : (2) 10/100 Ethernet Ports
Processor Specs : Atheros MIPS 24Kc, 400 MHz
Memory : 32 MB SDRAM, 8 MB Flash
Frequency : 2.4 GHz
Cross-pol Isolation : 23 dB Minimum
Max. VSWR : 1.6:1
Beamwidth : 55° (H-pol) / 53° (V-pol) / 27° (Elevation)
Polarization : Dual Linear
Enclosure : Outdoor UV Stabilized Plastic
Mounting : Pole-Mount (Kit Included)
Operating Temperature : -30 to 75° C (-22 to 167° F)
Operating Humidity : 5 to 95% Noncondensing
Wireless Approvals : FCC Part 15.247, IC RS210, CE
RoHS Compliance : Yes
Shock & Vibration : ETSI300-019-1.4
