Description

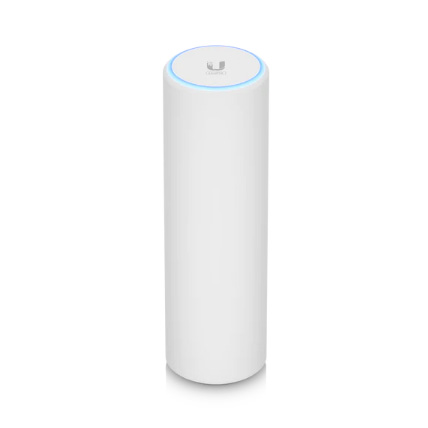

Ubiquiti Indoor/outdoor 4×4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that offers best-in-class signal meshing to improve wireless coverage of home and business networks. The U6 Mesh can achieve an aggregate throughput rate of up to 5.3 Gbit/s with its 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz (2×2 MIMO) bands.
This access point also operates at full 4×4 MIMO with 160MHz channels to create high-capacity wireless uplinks and enable faster data transmission. The sleek U6 Mesh is discreet enough to display anywhere in your home or office, yet rugged enough to perform reliably outdoors thanks to its IPX5-rated waterproof housing.
The U6 Mesh is a plug-and-play device that allows you to easily extend your wireless signal for complete, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
Ubiquiti WiFi 6 Mesh Hardware Specification
Management interfaces : Ethernet, Bluetooth

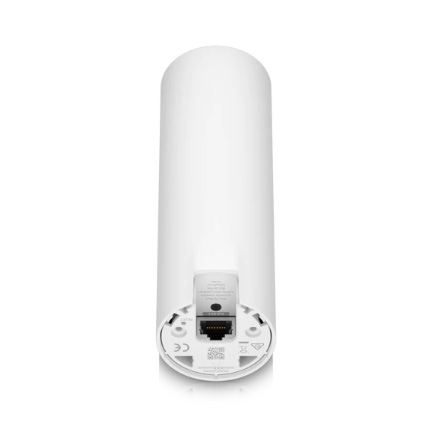

Networking interface : (1) GbE RJ45 port
Button : Factory reset
LED* : White/blue, *Due to chip supply shortages, the U6 AP’s LED has been limited to only white and blue color modes.
Power method : 802.3af PoE
Power supply : UniFi PoE switch, 48V, 0.32A PoE adapter (included)
Supported voltage range : 44 to 57VDC
Max. power consumption : 11.4W
Max. TX power – 2.4 GHz, 5 GHz : 22 dBm, 26 dBm
MIMO – 2.4 GHz, 5 GHz : 2 x 2 (UL MU-MIMO), 4 x 4 (DL/UL MU-MIMO)
Throughput rate – 2.4 GHz, 5 GHz : 573.5 Mbps, 4.8 Gbps
Antenna gain – 2.4 GHz, 5 GHz : 3 dBi, 5 dBi

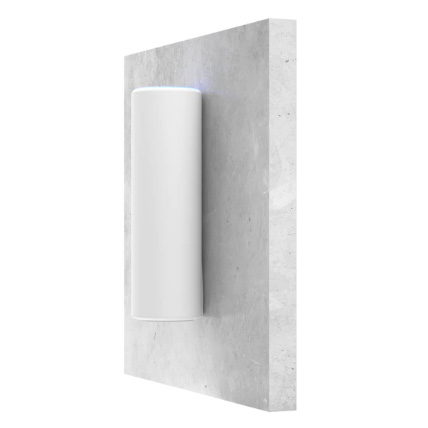

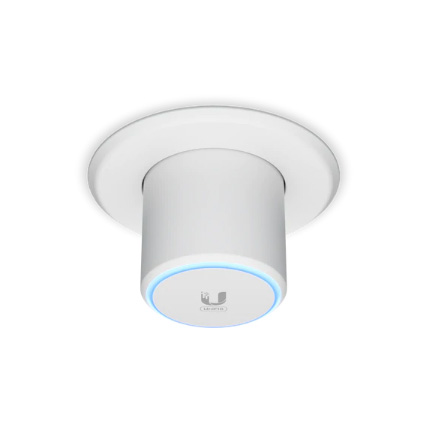

Mounting : Wall, desktop, pole mount(included), Ceiling mount (optional)
Operating temperature : -30 to 60° C (-22 to 140° F)
Operating humidity : 5 – 95% noncondensing
Certifications : CE, FCC, IC
Adopt the U6-Mesh in Minutes with Your UniFi Network Application and:
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Managed with the UniFi Network application: Version 6.3.51 and later
