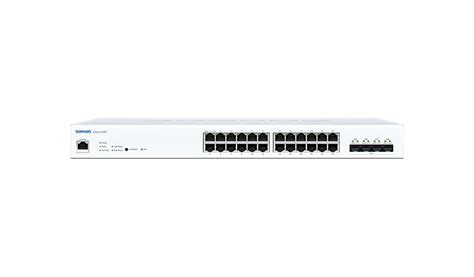

Sophos CS110-24FP 100 Series Switch

CS110-24FP
Connectivity at the LAN Edge
The Sophos Switch Series provides secure, scalable Ethernet access for your wired and wireless devices and puts your LAN connectivity fully under your control.

Access Layer Switch Range
The Sophos Switch Series offers a range of network access layer switches to connect and power the devices connecting to the Local Area Network (LAN), while adding security controls and segmentation at the all-important LAN edge.

Description

Hardware
Form factor
1UMounting
Rackmount
Technical Specifications
Switching Capacity
128 Gbps
MAC Address Table
16K
Memory
512 MB
Flash Memory
NOR 2 MB
NAND 128 MB
Packet Buffer Memory
1.5 MB
VLANs
Support for up to 256 VLANs simultaneously (out of 4096 VLAN IDs)
Network Interfaces
10/100/1000Base-T
24
SFP 1G
0
SFP+ 1G/10G
4
Other Interfaces
Console Port | AC Power Socket
Power over Ethernet
Power Budget
410W
PoE-capable Ports
1 to 24
Supported PoE Standard
802.3af/802.3at
Max. PoE Devices
24 (15.4W)/13 (30W)
