Description
TAKE VIDEO CONFERENCING WITH YOU

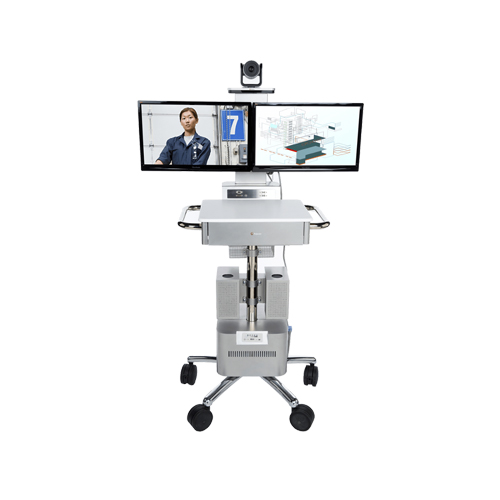

When looking to get remote participants to a temporary location such as a classroom, with a patient or on the manufacturing floor, you need to get the right resource to the right place quickly. The RealPresence® Utility Cart 500 solution is a flexible, movable video conferencing solution that brings far-end participants on location no matter where they are located with the full power of audio and video innovations.
WE WORK EVERYWHERE THAT YOU DO
Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.
VIDEO DISPLAY
22″ dual displays
VIDEO STANDARDS AND PROTOCOLS
H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
H.239/People+Content™
H.263 & H.264 video error concealment
PEOPLE VIDEO RESOLUTION
1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
4SIF/4CIF, 60 fps from 512 Kbps
4SIF/4CIF, 30 fps from 128 Kbps
SIF (352 x 240), CIF (352 x 288) from 64 kbps
QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
w288p from 128 Kbps
w448 from 384 Kbps
w576p from 512 Kbps
VIDEO INPUT
1 x EagleEye™ HD camera (HDCI)
1 x HDMI 1.3
1 x VGA
VIDEO OUT
2 x HDMI 1.3
CONTENT VIDEO RESOLUTION
Input:
WUXGA (1920 x 1200)
HD (1920 x 1080i), HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x720p), XGA (1024 x 768)
SVGA (800 x 600)
Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
CONTENT SHARING
People+Content and Pano App
AUDIO STANDARDS & PROTOCOLS
StereoSurround™ technology
22 kHz bandwidth with Siren™ 22 technology
14 kHz bandwidth with Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
Automatic gain control
Automatic noise suppression
Instant adaptation echo cancellation
Audio error concealment
Keyboard noise reduction
M-Mode for music and medical applications
OTHER ITU-SUPPORTED STANDARDS
H.224/H.281 far-end camera control
H.323 Annex Q far-end camera control
H.225, H.245, H.241
H.239 dual stream
H.460 NAT/firewall traversal
CART
Structural support for one (1) 27” display or two (2) 22” displays
Tray that can be mounted on either side of the cart and can support a laptop or other device
Ability to mount a wireless bridge on the back
AC powered only unless the battery pack and power supply are purchased
Ability to add a lock to the drawer (user supplied)
2 locking casters
Basket on back for additional storage
Hooks on the top/side of the cart for peripheral cable management
I/O panel on the cart with access to the (2) USB ports on the codec, VGA, HDMI, and audio
OPTIONS
Powered Speakers (enhanced audio) and housing
Power supply, battery, and enclosure for easy field installation on the base of the cart
1080p license, providing up to 1080p60 for people and content
Multipoint license for up to 6 sites (SDCP), or 4 sites (HDCP)
