Description
MISSION COMPLETE

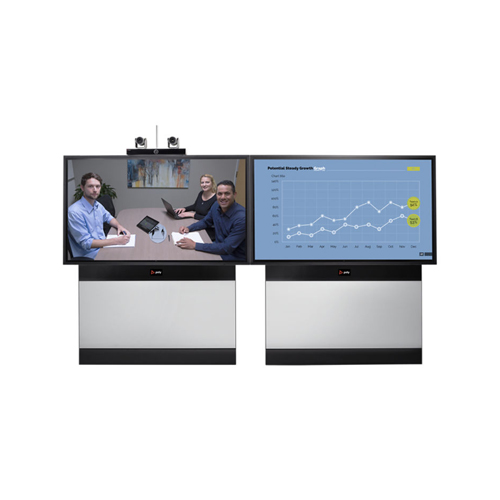

Bring far flung teams together with an all-in-one video conferencing solution. It provides every piece you need – from mics and monitors to smart-tracking EagleEye Director II cameras to a powerful codec – to deliver high-end conferencing to medium and large sized rooms. Easily share ideas, plans and demos in rich, UltraHD video and high-fidelity audio. And use digital whiteboarding or live annotation to get more done.
WE WORK EVERYWHERE THAT YOU DO
Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.
EASY DEPLOYMENT
Count on straightforward global deployment, thanks to one complete system with high-fidelity monitor(s), tabletop mic arrays, an EagleEye Director II, a powerful codec, cables, a stand and instructions.
GENERAL
Power supply: 110 V–240 V AC, 6 A max
Operating temperature: 0–40 °C
Operating humidity: 15%–80% non-condensing
Enclosure: Steel frame with steel and MDF covers
DIMENSIONS
Medialign 65
(H) 1952 x (W) 1459 x (D) 161
Medialign 65D
(H) 1952 x (W) 2928 x (D) 161
Medialign 75
(H) 2222 x (W) 1735 x (D) 195
Medialign 75D
(H) 2222 x (W) 3470 x (D) 195
Medialign 86
(H) 2300 x (W) 1896 x (D) 215
Medialign 86D
(H) 2300 x (W) 3863 x (D) 215
PRODUCT WEIGHT
Medialign 65
124.9 kg (275.4 lbs)
Medialign 65D
223.8 kg (493.4 lbs)
Medialign 75
158.7 kg (349.9 lbs)
Medialign 75D
294.9 kg (650.2 lbs)
Medialign 86
154.7 kg (341.0 lbs)
Medialign 86D
289.7 kg (638.7 lbs)
REGULATORY COMPLIANCE
UL/cUL, CE
POWER INLET
110 V–240 V AC, 50/60 Hz breaker protected to 10 A
UHD LED DISPLAYS
Display type: Edge-lit LED display
Maximum resolution: 3840 x 2160
Contrast ratio (typical):
65″–1000:1
75″–1200:1
86″–1200:1
Diagonal Screen Size:
65″ (1651 mm)
75″ (1905 mm)
86″ (2184 mm)
Viewing angle: +/- 178 degrees
Brightness (typical):
65″–450 cd/m²
75″–350 cd/m²
86″–450 cd/m²
LOUDSPEAKERS
Frequency response: 90–20 kHz
THD at nominal output: < 1%–Woofer amplifier power: 17.5 W, 1% THD; 25 W
EAGLEEYE DIRECTOR II
Connections
1x Mini-HDCI out to video system
2x USB 2.0 – 1x 3.5 mm stereo line-in
1x HDMI in
1x HDMI out
REALPRESENCE GROUP 500 CODEC
Video input
1x HDCI
1x HDMI 1.31 x VGA
Video out: 2x HDMI 1.3
People video resolution 1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
4SIF/4CIF, 60 fps from 512 Kbps
4SIF/4CIF, 30 fps from 128 Kbps
SIF (352 x 240), CIF (352 x 288) from 64 Kbps
QSIF (176 x 120), QCIF (176 x 144) from 64 Kbps
w288p from 128 Kbps
w448 from 384 Kbps
w576p from 512 Kbps
Content video resolution (Input)
HD (1920 x 1080i), HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x 720p), XGA (1024 x 768)
SVGA (800 x 600)
Content video resolution (Output)
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)
VGA (640 x 480)
