Description
HIGH PERFORMANCE FOR LARGE ROOMS
Tired of remote meetings and training sessions that are all talk and no (inter)action? Bring your classrooms, boardrooms and larger conference spaces to life with the RealPresence® Group 700 video conferencing system. This top-of-the-line solution plays well with other audio, video and content-sharing components for a more collaborative, integrated and enjoyable experience for all involved.
WE WORK EVERYWHERE THAT YOU DO
Poly video solutions make meetings a breeze. Use cloud video apps for a full experience with all the features you know and love. Or use standards-based SIP and H.323 compatibility to connect to different cloud video services throughout your day.
PACKAGE INCLUDES:

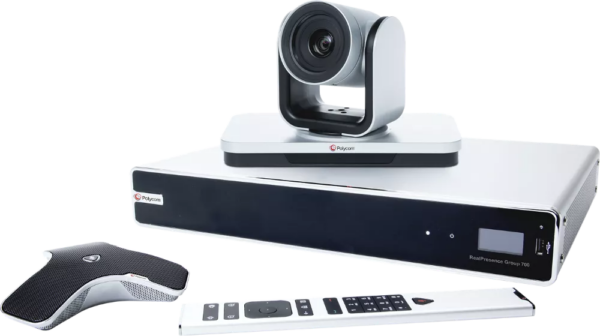

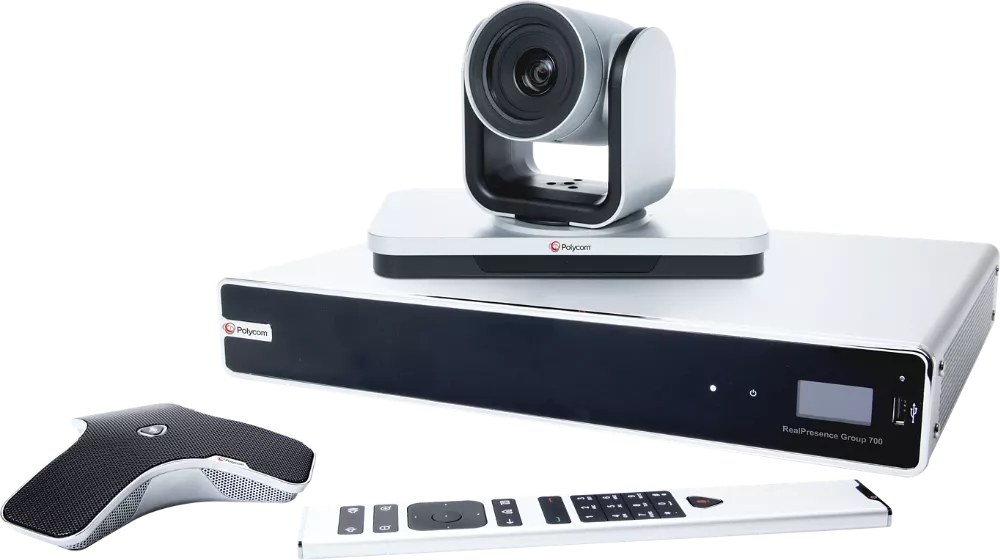

RealPresence Group 700 codec
RealPresence Group Microphone Array
EagleEye IV camera
Cable bundle
Remote control
Rack (19”) mounting ears
VIDEO STANDARDS AND PROTOCOLS
H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
H.239/People+Content
H.263 & H.264 Video error concealment
VIDEO INPUT
2 x HDCI
3 x HDMI 1.4
1 x YPbPr component
1 x dual RCA composite
1 x VGA
VIDEO OUT
3 x HDMI 1.3
3 x VGA
PEOPLE VIDEO RESOLUTION
1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
4SIF/4CIF, 60 fps from 512 Kbps
4SIF/4CIF, 30 fps from 128 Kbps
SIF (352 x 240), CIF (352 x 288) from 64 Kbps
QCIF (176 x 144) from 64 Kbps
w288p from 128 Kbps
w448p from 384 Kbps
w576p from 512 Kbps
CONTENT VIDEO RESOLUTION
Input
HD (1920 x 1080i)
HD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768) (1024 x 768)
SVGA (800 x 600)
Output
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)
VGA (640 x 480)
Content Frame Rate
5–60 fps (up to 1080p resolution at 60 fps)
Content Sharing
People+Content IP and Pano app support
VbSS content in Microsoft environments
AUDIO INPUT
2 x RealPresence Group microphone array input ports (supporting a total of 4 microphone arrays)
USB headset support
2 x HDCI (camera)
3 x HDMI
2 x RCA line-in
AUDIO OUTPUT
1 x HDMI (to in-room audio system)
1 x HDMI (to conference recording device)
USB headset support
1 x RCA pair stereo line-out
OTHER INTERFACES
2 x USB 3.0 (back)
1 x USB 2.0 (front)
1 x RS-232 DB9
AUDIO STANDARDS AND PROTOCOLS
22 kHz bandwidth with Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
14 kHz bandwidth with Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
CONSTANT CLARITY TECHNOLOGY
Automatic gain control
Automatic noise suppression
Keyboard noise reduction • NoiseBlock technology
Acoustic Fence technology
Live music mode
Instant adaptation echo cancellation
Audio error concealment
Siren Lost Packet Recovery technology
StereoSurround technology
Active Lip Synchronization
OTHER SUPPORTED STANDARDS
H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
BFCP (RFC 4582)
TIP
NETWORK
IPv4 and IPv6 support
2 x 10/100/1G Ethernet Switch
Auto-MDIX
H.323 and/or SIP up to 6 Mbps
Lost Packet Recovery (LPR) technology
Reconfigurable MTU size
RS232 with API support
Web Proxy support—Basic, Digest and NTLM
Simple Certificate Enrollment Protocol (SCEP)
INTEROPERABILITY
Microsoft Lync and Skype for Business certification, including Skype for Business Online
IBM Sametime support
Zoom Meetings interoperability
BlueJeans Cloud Services Interoperability
Microsoft Office Communications Server integration
Microsoft ICE support
SECURITY
US DoD UC APL Certified (see the US Federal Government Accreditation site for details)
Media Encryption (H.323, SIP): AES-128, AES-256
H.235.6 support
Authenticated access to admin menus, web interface, and telnet API
FIPS 140-2 Validated Cryptography (Validation Certificate #1747)
PKI/Certificate Management:
SSL 3.0, TLS 1.0, 1.1, 1.2
Self-signed and CA-signed certificate support
CRL and OCSP-based certificate revocation checking
Network intrusion detection system
Local account password policy configuration
Security profiles
Web UI/SNMP Whitelists
Local account and login port lockout
OPTIONS
Pano
RealPresence Touch
EagleEye Producer
EagleEye Director II
SoundStation IP 7000 conference phone integration
SoundStructure integration
