Description

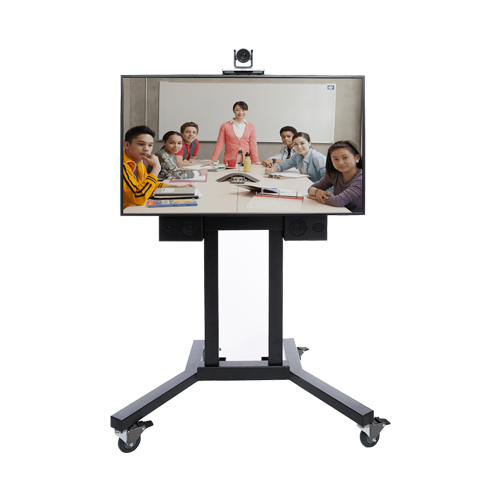

Remove traditional educational barriers by bringing remote students, experts or any other location into your classroom using innovative video technology. The RealPresence EduCart 500 solution is a flexible, mobile video conferencing solution that brings educators, experts, students or locations into the classroom no matter where they are located.
A+ FOR EXPANDING YOUR CLASSROOM
Remove traditional educational barriers by bringing remote students, experts or any other location into your classroom using innovative video technology. The RealPresence EduCart 500 solution is a flexible, mobile video conferencing solution that brings educators, experts, students or locations into the classroom no matter where they are located.
MOBILITY
Highly mobile and stable cart eliminates the need for dedicated video units in each classroom
VIDEO DISPLAY
55” LED flat panel
VIDEO STANDARDS AND PROTOCOLS
H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
H.239/People+Content™
H.263 & H.264 video error concealment
PEOPLE VIDEO RESOLUTION
1080p, 60 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 60 fps from 832 Kbps
720p, 30 fps from 512 Kbps
4SIF/4CIF, 60 fps from 512 Kbps
4SIF/4CIF, 30 fps from 128 Kbps
SIF (352 x 240), CIF (352 x 288) from 64 kbps
QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
w288p from 128 Kbps
w448 from 384 Kbps
w576p from 512 Kbps
VIDEO INPUT
1 x EagleEye HD camera (HDCI)
1 x HDMI 1.3
1 x VGA
VIDEO OUT
2 x HDMI 1.3
CONTENT VIDEO RESOLUTION
Input:
WUXGA (1920 x 1200)
HD (1920 x 1080i), HD (1920 x 1080p
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x720p), XGA (1024 x 768)
SVGA (800 x 600)
AUDIO STANDARDS & PROTOCOLS
StereoSurround™ technology
22 kHz bandwidth with Siren™ 22 technology
14 kHz bandwidth with Siren™ 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
Automatic gain control
Automatic noise suppression
Instant adaptation echo cancellation
Audio error concealment
Keyboard noise reduction
Live MusicMode™ technology
Other ITU-supported standards
H.224/H.281 far-end camera control
H.323 Annex Q far-end camera control
H.225, H.245, H.241
H.239 dual stream
H.460 NAT/firewall traversal
CART
Structural support for the included 55” display
Adjustable height to accommodate user need, center of display height: 46”, 50” or 54”
2 x powered speakers (25W LF & 16W HF per speaker) with integrated high efficiency digital amplifier
Sturdy side handles allow cart to be safely and easily moved and maneuvered
4” locking heavy duty swivel casters
Integral cable runs from display top to base for hiding unsightly cables
Integrated basket with cover to hold microphone/cable, IR remote
Rear cover to neatly hide codec, power supply, and power bar behind display
OPTIONS
1080p license, providing up to 1080p60 for people and content
Multipoint license for up to 6 sites (SDCP), or 4 sites (HDCP)
PHYSICAL SIZE
49”W x 74”H x 33.25”D (with display and camera)
WEIGHT
144 lbs
