Description
AUDIO
Three cardioid microphones
Loudspeaker frequency: 220-14,000 Hz
Volume: 90 dB at 0.5-m peak volume
3.7 m/12 ft microphone pickup range
AUDIO FEATURES
Audio Codecs : G.711 (A-law and μ-law), G.722, G.722.1, G.722.1C, G.729AB, G.719, SILK, Polycom® Siren™ 7, Siren™ 14, iLBC (3.33Kbps and 15.2Kbps), Opus (8Kbps-24Kbps)
NoiseBlock
Voice activity detection
Acoustic Clarity™ technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression–Type 1 compliant (IEEE 1329 full duplex)
Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P) 2
DTMF tone generation (RFC 2833 and in-band)
Comfort noise generation
Low-delay audio packet transmission
Adaptive jitter buffers
Packet loss concealment
CALL HANDLING FEATURES*
Up to three lines (registrations)
Shared call/bridged line appearance
Distinctive incoming call treatment/call waiting
Call timer and call waiting
Call transfer, hold, divert (forward), pickup
Called, calling, connected-party information
Local three-way audio conferencing
One-touch speed dial and meeting join
Do-not-disturb function
Local configurable digit map/dial plan
Corporate directory access using LDAP
Visual conference management
NETWORK AND PROVISIONING
IETF SIP (RFC 3261 and companion RFCs)
SDP
Single-port gigabit Ethernet 10/100/1000Base-TX across LAN
Wi-Fi network connectivity : 2.4–2.4835 GHz (802.11b, 802.11g, 802.11n HT20), 5.15–5.825 GHz (802.11a)
Manual or dynamic host configuration protocol (DHCP) network setup
Time and date synchronization using SNTP
FTP/TFTP/HTTP/HTTPS server-based central provisioning
RealPresence Resource Manager (v 10.7 or above) based provisionin
Provisioning and call server redundancy support
Polycom Zero Touch Provisioning
PDMS-E, PDMS-SP
QOS SUPPORT
IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP
VLAN-CDP, DHCP VLAN discovery
LLDP-MED for VLAN discovery
SECURITY
FIPS 140-2 compliant cryptographic module
802.1X authentication and EAPOL
Media encryption via SRTP
Transport layer security (TLS) v1.2
Encrypted configuration files
Digest authentication
Password login
Support for URL syntax with password for boot server address
HTTPS secure provisioning
Support for signed software executables
Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)2
POWER
LAN IN: Built-in auto-sensing IEEE 802.3af. PoE Device (Class 0)
Optional power kit includes extended single-port gigabit midspan, 802.3af Type 2 compliant, local power cord and network cable
ENVIROMENTAL
Operating temperature: 0 to 40 °C (+32 to 104 °F)
Relative humidity: 5% to 95% (non-condensing)
Storage temperature: -20 to +70 °C (-4 to +160 °F)

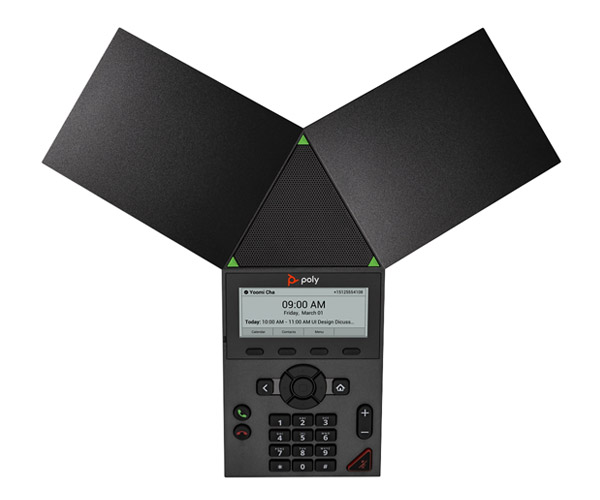

TRIO 8300 SHIPS WITH
Phone console: 2200-66840-xxx
7.6 m/25 ft network cable CAT 5e
Setup sheet
