Description
FEATURES
GIGABIT PERFORMANCE
Minimize transfer times and stream high-bandwidth files to connected devices without interference.
PLUG-AND-PLAY CONVENIENCE
Instantly extend your office network with a quick and easy installation
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion
AUTO-SENSING PORTS
Automatically optimize speed for each connected device
TECHNICAL SPECS

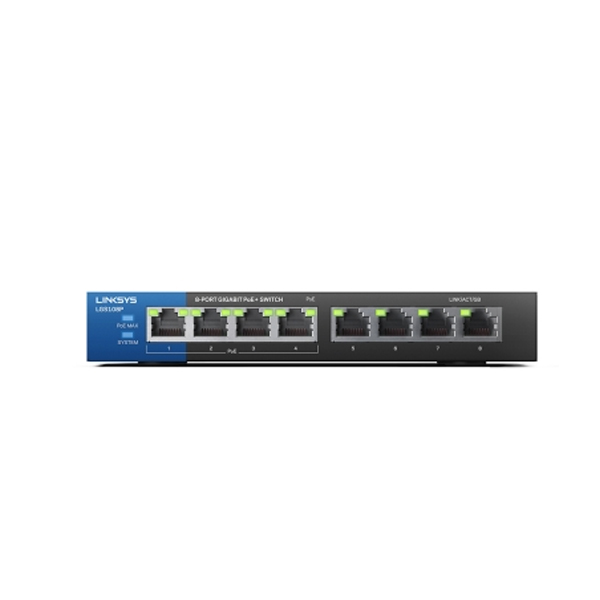

- Model Name:
LGS108P - Network Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3af
- IEEE 802.3at (PoE+)
- Ports:
8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50 W - LEDs:
Link, speed, activity, and PoE indicators - Performance:
- Full line rate and forwarding rate of 64B frame at:
- 1.488 Mpps for 1000M port
- 0.1488 Mpps for 100M port
- 0.01488 Mpps for 10M port
- Maximum Power Consumption:
1.71 W / 5.08 W - MAC Address Table Size:
8,000 entries - Bandwidth:
16 Gbps (non-blocking) - Fans:
None - Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables - Dimensions (LxWxH):
210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.) - Weight:
0.50 kg (1.10 lbs) - Power:
54 VDC, 1.2 A
- Power Consumption:
3.83 W / 7.0 W - Power Consumption:
3.83 W / 7.0 W - Power Saving:
Cable connected detection, sleep mode - Power Supply:
External - Operating Temperature:
0–50°C (32–122°F) - Storage Temperature:
-40–70°C (-40–158°F) - Operating Humidity:
10–90% (non-condensing) - Storage Humidity:
10–90% (non-condensing) - Mounting:
Wall - Quality Of Service:
802.1p and DSCP - Regulatory Compliance:
FCC Class A, CE - Warranty and Support:
5 Year Warranty
