Description

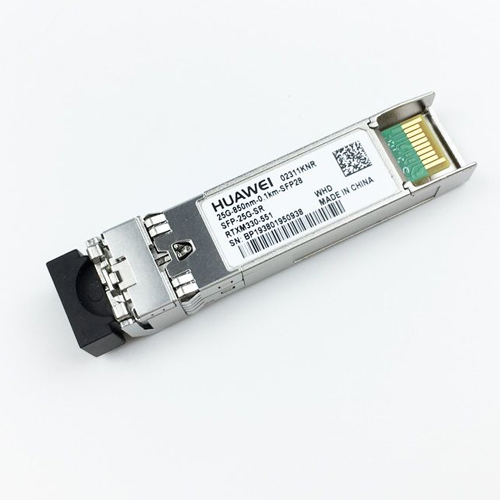

SFP-25G-SR
Part number : 02311KNR
Version support : V100R006C00 and later versions
Transceiver form factor : SFP28
Transmission speed : 25GE
Center wavelength (nm) : 850
Standards compliance : 25GBase-SR
Connector type : LC
Type of the end face of the fiber ceramic ferrule : PC or UPC
Applicable cable and maximum transmission distance
When the bit error rate (BER) is 10^-12:
Multimode fiber (OM3) (with diameter of 50 μm): 30 m
Multimode fiber (OM4) (with diameter of 50 μm): 40 m
When the BER is 5*10^-5:
Multimode fiber (OM3) (with diameter of 50 μm): 70 m
Multimode fiber (OM4) (with diameter of 50 μm): 100 m
Modal bandwidth
Multimode fiber (OM3): 2000 MHz*km
Multimode fiber (OM4): 4700 MHz*km
Transmit power (dBm) : -8.4 to +2.4
Maximum receiver sensitivity (dBm) : -10.3
Overload power (dBm) : 2.4
Extinction ratio (dB) : ≥ 2
Operating temperature : 0°C to 70°C (32°F to 158°F)
