Description
SFP-10G-CU1M Overview

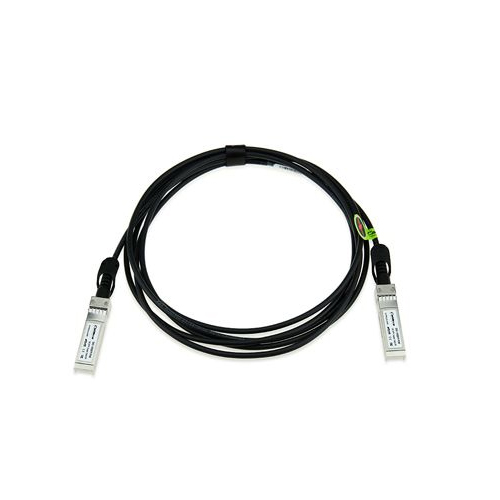

Huawei SFP-10G-CU1M is the compatible 10G SFP+ 1M passive direct attach copper TWINAX cable.
Quick Spec
Model : SFP-10G-CU1M
Form Factor : SFP+ DAC Cable
Passive or actively equalized : Passive
Cable Length : 1 m
Cable Type : Twinax
Minimum cable bend radius : 25 mm
Connector : SFP+/SFP+
Product Details
SFP-10G-CU1M provides these features:
• lower cost than SFP+ optical transceiver and active optical cable (AOC)
• Support for multi-gigabit data rates up to 10.5Gbps
• Support for 1x, 2x, 4x and 8x Fibre Channel data rates
• Hot-pluggable SFP 20PIN footprint
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant for enhanced EMI/EMC performance
• Single 3.3V power supply
• Compatible to SFP+ MSA
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
