Description

QSFP-40G-CU3M Overview

Huawei QSFP-40G-CU3M Compatible 40G QSFP+ DAC Cable (3-meter, passive, QSFP+ to QSFP+, 28AWG).

Quick Specs

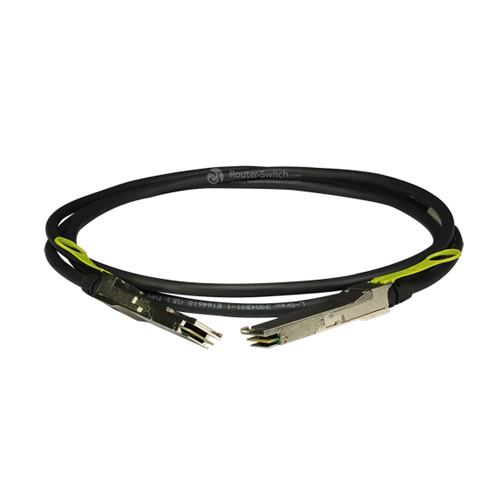

Figure 1 shows the appearance of QSFP-40G-CU3M.

Product Code : QSFP-40G-CU3M

Part Number : 02310MUH

Description : QSFP+,40G,High Speed Direct-attach Cables,3m,QSFP+38M,CC8P0.32B(S),QSFP+38M,Used indoor

Huawei Genuine : QSFP-40G-CU3M

Connector Type : QSFP+ to QSFP+

Cable Type : Passive Copper Cable

Cable Length : 3m(9.84ft)

Temperature : 0 to 70°C (32 to 158°F)

Protocols : 40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel

Max Data Rate : 40Gbps

Wire AWG : 28AWG

Jacket Material : PVC(OFNR)

Product Series : CE7800

UOM : PCS

Pack Weight(kg) : 0.65

Pack Volume(m^3) : 0.005159

QSFP-40G-CU3M Specification

QSFP+,40G,High Speed Direct-attach Cables,3m,QSFP+38M,CC8P0.32B(S),QSFP+38M,Used indoor
