Description
Basic Information

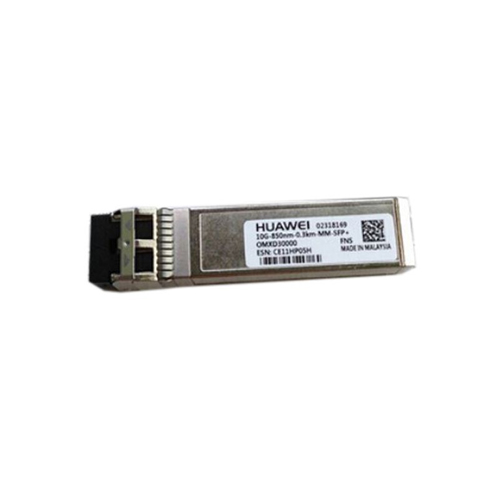

Module name OMXD30000
Part Number 02318169
Model OMXD30000
Form factor SFP+
Application standard 10GBASE-SR
Connector type LC
Optical fiber type MMF
Working case temperature [°C(°F)] 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s] 10 Gbit/s
Target transmission distance [km]
Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.026 km
Multimode fiber (OM1): 0.033 km
Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.066 km
Multimode fiber (OM2): 0.082 km
Multimode fiber (OM3): 0.3 km
Multimode fiber (OM4): 0.4 km
Transmitter Optical Characteristics
Center wavelength [nm] 850 nm
Maximum Tx optical power [dBm] -1.0 dBm
Minimum Tx optical power [dBm] -7.3 dBm
Minimum extinction ratio [dB] 3.0 dB
Receiver Optical Characteristics
Rx sensitivity [dBm] -11.1 dBm
Overload power [dBm] -1.0 dBm
