Description
Appearance

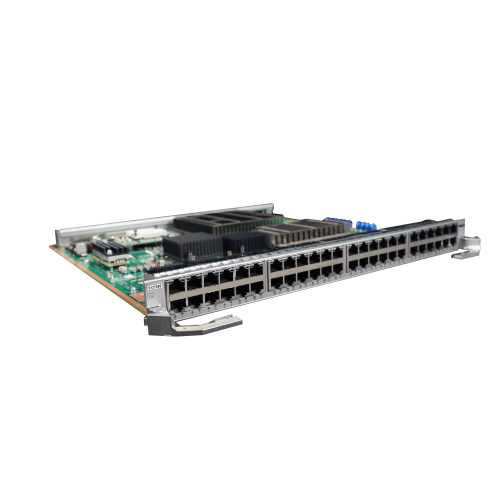

Figure 7-47 Appearance of the LST7G48TX6S0
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)] : 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)] : 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)] : 3.70 kg (8.16 lb)
Weight with packaging [kg(lb)] : 5.75 kg (12.68 lb)
Typical power consumption [W] : 140 W
Typical heat dissipation [BTU/hour] : 477.69 BTU/hour
Maximum power consumption [W] : 144 W
Maximum heat dissipation [BTU/hour] : 491.34 BTU/hour
Memory : 1 GB
