Description

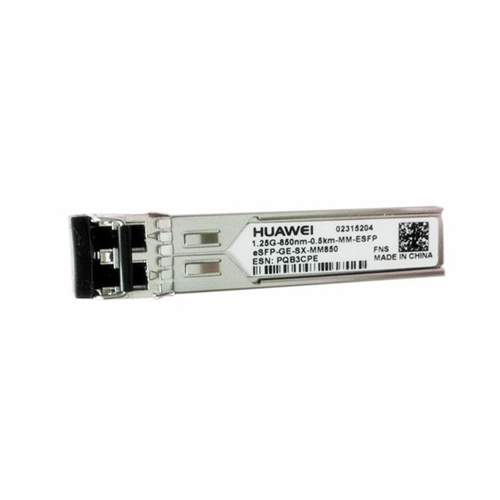

eSFP-GE-SX-MM850 Overview
Huawei eSFP-GE-SX-MM850 is Optical Transceiver. It’s a Multi-mode Module.
Quick Specs
Product Code : eSFP-GE-SX-MM850
Transceiver form factor : eSFP
Transmission speed : GE
Center wavelength (nm) : 850
Standard compliance : 1000base-SX
Connector type : LC
Applicable cable and maximum
transmission distance
· Multimode fiber (with modal bandwidth of 160 MHz*km and diameter of 62.5 μm): 0.22 km
· Multimode fiber (OM1): 0.275 km
· Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.5 km
· Multimode fiber (OM2): 0.55 km
· Multimode fiber (OM3): 1 km
Transmit power (dBm) : -9.5 to -2.5
Maximum receiver sensitivity (dBm) : -17.0
Overload power (dBm) : 0
Extinction ratio (dB) : 9
Operating temperature : 0°C to 70°C (32°F to 158°F)
Net Dimension(D x W x H mm) : 110 x 70 x 37
