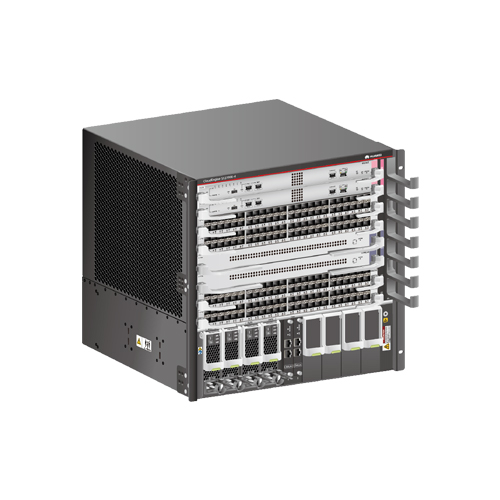

Description
Specifications
Number of LPU slots 4
Number of MPU slots 2
Number of SFU slots 2
Number of fan slots 2
Number of power module slots 4
Number of CMU slots 2
Port density per chassis
192xFE, 192xGE, 192x10GE, 160x25GE, 96x40GE, 96x100GE
Installation
The switch can be installed in an N66E or N68E cabinet, one cabinet for one or two chassis.
Cluster switch system (CSS) : Service port clustering
Power specifications
DC input voltage
Rated voltage: -48 V DC to -60 V DC
Maximum voltage range: -40 V DC to -72 V DC
AC input voltage
Rated voltage: 110 V AC/220 V AC, 50/60 Hz
Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)
HVDC input voltage (3000 W AC)
Rated voltage: 240 V DC
Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)
With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured) : 24.5 kg/66 kg (54 lb/145.5 lb)
Reliability and availability
Mean Time Between Failures (MTBF): 33.38 years
Mean time to repair (MTTR): 2 hours
Availability: 0.99999658
Environment specifications
Operating temperature and altitude:
-60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)
1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).
4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)
Relative humidity: 5% RH to 95% RH (noncondensing)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Storage altitude: < 5000 m (16404 ft.)
Noise under normal temperature (sound power) : ≤ 78 dB(A)
Certification
EMC certification
Safety certification
Manufacturing certification
Part number : 02115869
