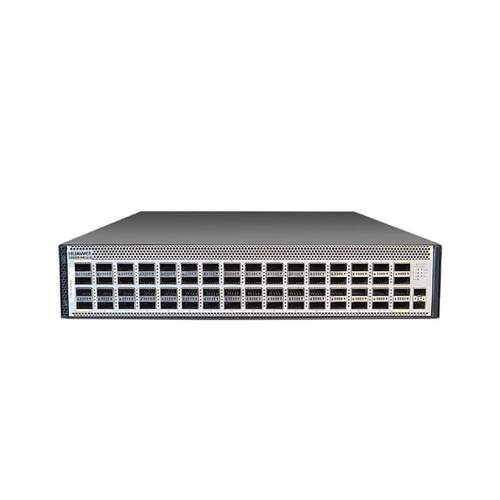

Description
Physical specifications
Dimensions (H x W x D): 88.1 mm x 442.0 mm x 600.0 mm (3.47 in. x 17.4 in. x 23.6 in.)
Weight (with two power modules and three fan modules, calculated based on the heaviest model if multiple models are supported): 22.2 kg
Temperature
Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity : 5% RH to 95% RH, noncondensing
Altitude : < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) : Back-to-front airflow: < 64 dBA, Front-to-back airflow: < 64 dBA
Power source type : AC/DC/high-voltage DC
AC power input
Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
Rated voltage range: -48 V DC to -60 V DC
Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
Rated voltage of 240 V high-voltage DC power input: 240 V DC
Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC
Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC
Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
Rated input current
1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC)
1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC)
1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Maximum power consumption : 965W
Typical power consumption
375 W (100% throughput, QSFP28 cables on 64 ports, double power modules)
Chassis heat dissipation
Maximum heat dissipation : 3293BTU/hr
Typical heat dissipation : 1280 BTU/hr (100% throughput, QSFP28 cables on 64 ports, double power modules)
Surge protection
Power module:
AC: 4 kV in common mode and 2.5 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
Technical specifications
Processor : 1.5 GHz, eight-core
DRAM Memory : 4GB
NOR Flash : 32MB
NAND Flash :
