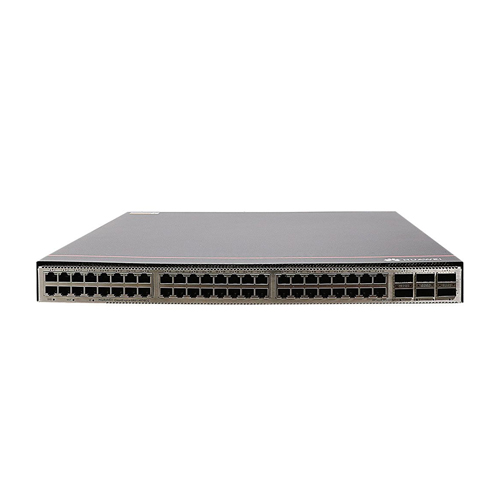

Description
Technical Specifications
Dimensions with packaging (H x W x D) [mm (in.)] : 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)] : Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Weight without packaging (base configuration) [kg (lb)] : 6.6 kg (14.6 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] : 8.9 kg (19.6 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)] : 10.4 kg (22.93 lb)
Weight with packaging (full configuration) [kg (lb)] : 12.3 kg (27.12 lb)
Installation Type : Cabinet Installation
CPU : 4-core, 1.4 GHZ
Memory : DRAM: 4 GB
NOR Flash : 64 MB
NAND Flash : 4 GB
USB : Supported
Power supply mode : AC,DC,HVDC
Console port : RJ45
Downlink Service interface : 48*10GE RJ45 (Only full-duplex is supported)
Uplink Service interface
6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function : 10GE electrical ports and 100GE optical ports
RTC : Supported
Typical power consumption [W]
347 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
362 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]
1184 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
1235 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Static power consumption [W] : 235 W
Static heat dissipation [BTU/hour] : 801 BTU/hour
Maximum power consumption [W] : 452 W
Maximum heat dissipation : 1542
Number of power modules : 2
Redundant power supply : 1+1 backup
Rated input voltage [V]
600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
1000 W DC power module: –48 V DC to –60 V DC
1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
1000 W DC power module: –38.4 V DC to –72 V DC
1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
600 W AC&240 V DC PSU: 8 A (100 V AC to 240 V DC); 4 A (240 V DC)
1000 W DC PSU: 30 A (–48 V DC to –60 V DC)
1200 W high-voltage DC power module: 8 A
Rated output power [W]
600 W AC&240 V DC power module: 600 W
1000 W DC power module: 1000 W
1200 W high-voltage DC power module: 1200 W
Certification
Complies with safety standards.
Complies with EMC standards.
Complies with environmental protection standards.
