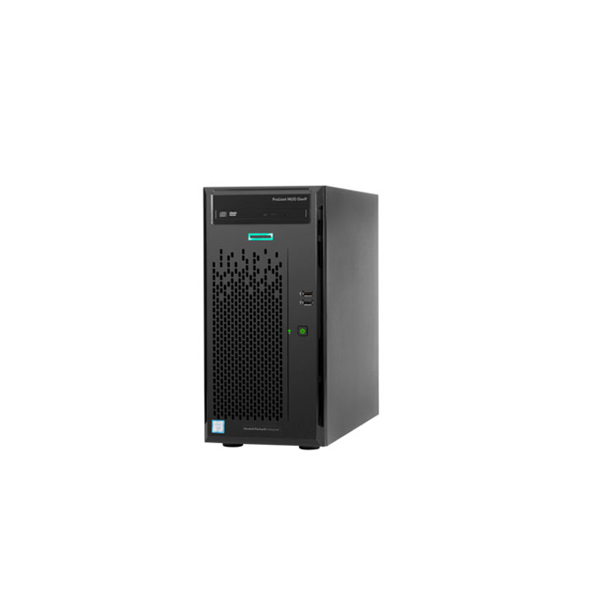

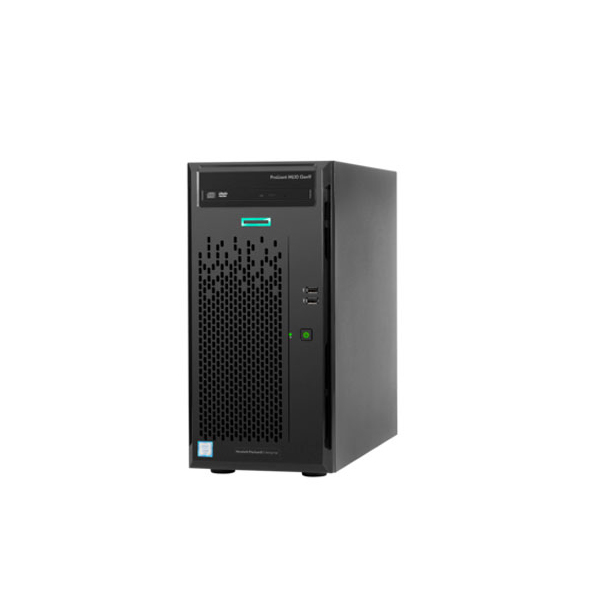

The HPE ProLiant ML10 Gen9 Server offers the right server technology for home or small businesses looking for performance and features at an affordable price. Embedded Intel® AMT Management module with remote console, Web browser GUI and remote power on/off. Intel chipset supports RSTe SATA RAID disk drives to improve the performance for workloads.
Efficiency and Expandability to Fit the Needs of Growing, Budget-Conscious Businesses
The HPE ProLiant ML10 Gen9 Server offers expandability with internal support for up to six Large Form Factor (LFF) disk drives and increased I/O expansion. Configured with the Unified Extensible Firmware Interface (UEFI) boot mode allows provisioning both locally and remotely with either Intelligent Provisioning or Scripting Toolkits. With the optional HPE H241 Smart Host Bus Adapter, you get the flexibility to run in HBA mode or simple RAID mode. When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HPE Secure Encryption capabilities.
Workstation Oriented Design for Better Performance
The HPE ProLiant ML10 Gen9 Server graphics processing unit (GPU) supports two single wide and one double-wide GPU card to boost performance in graphics and VDI applications for financial services, education, scientific research, and medical imaging. It supports the Intel Xeon® E3-1200 v5 processor in a 4U chassis offering increased performance and efficiency. Server class technology allows for 24×7 business operation, offering higher reliability and longer lifecycle.
Technical Specifications
Processor family
Intel® Xeon® E3-1200 v5 product family
Intel® Pentium®
Intel® Core™ i3
Number of processors
1
Processor core available
2 or 4
Processor cache
8MB L3
4MB FOR INTEL CORE i3, i5 and i7 use
3MB FOR INTEL CORE i3, i5 and i7 use
Processor speed
3.9GHz
Form factor (fully configured)
4U
Form factor chassis
Tower
Power supply type
(1) Multi-output
Expansion slots
(4) Maximum – For detail descriptions reference the QuickSpecs
Memory, maximum
64GB
Memory slots
4 DIMM slots
Maximum
Memory type
DDR4 UDIMM
Memory protection features
Unbuffered ECC
Drive description
(6) LFF SATA
Non-hot plug, depending on model
System fan features
Non-hot plug non-redundant
Network controller
Intel® Ethernet Connection I219-LM 1 Ports per controller
Depending on model
Storage controller
Integrated SATA RAID
Depending on model
Infrastructure management
Intel® Active Management Technology (Intel® AMT)
