FG-100E-BDL Specification

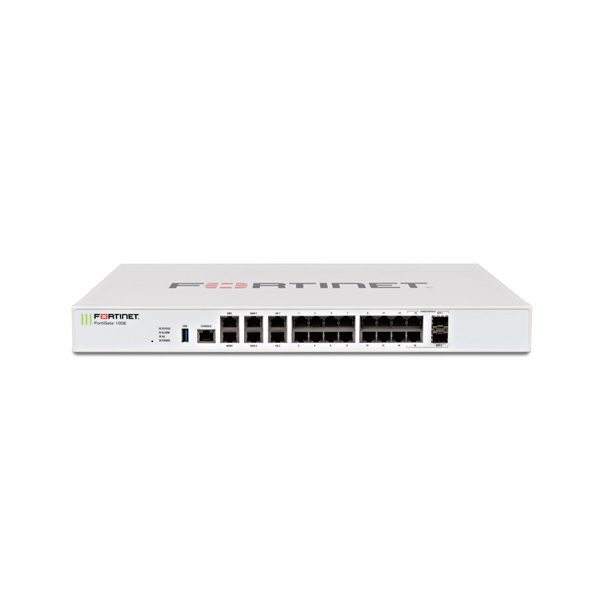

Fortinet FG-100E Hardware plus 1 Year 8×5 FortiCare and FortiGuard UTM Bundle
Interfaces and Modules
GE RJ45 Ports: 14
GE RJ45 Management/HA/DMZ Ports: 1 / 2 / 1
GE RJ45 WAN Ports: 2
GE RJ45 or SFP Shared Ports: 2
USB Port: 1
Console Port: 1
Included Transceivers: 0
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP) : 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 6.6 Mpps
Concurrent Sessions (TCP) : 2 Million
New Sessions/Second (TCP) : 30,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 10,000
SSL-VPN Throughput : 250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 500
SSL Inspection Throughput (IPS, avg. HTTPS) : 130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 130
Application Control Throughput (HTTP 64K) : 1 Gbps
CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
Virtual Domains (Default / Maximum) : 10-Oct
Maximum Number of FortiSwitches Supported : 24
Maximum Number of FortiAPs (Total / Tunnel) : 64 / 32
Maximum Number of FortiTokens : 5,000
Maximum Number of Registered FortiClients : 600
High Availability Configurations : Active / Active, Active / Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput: 500 Mbps
NGFW Throughput: 360 Mbps
Threat Protection Throughput: 250 Mbps
Dimensions and Power
Height x Width x Length: 1.75 x 17 x 10 inches, 44.45 x 432 x 254 mm
Form Factor: Rack Mount, 1 RU
AC Power Supply: 100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum): 23.0 W / 25.5 W
Heat Dissipation: 87.0 BTU/h
Operating Environment and Certifications
Operating Temperature: 32–104°F (0–40°C)
Storage Temperature: -31–158°F (-35–70°C)
Humidity: 10–90% non-condensing
Noise Level: 40.4 dBA
Operating Altitude: Up to 7,400 ft (2,250 m)
Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications: ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6
