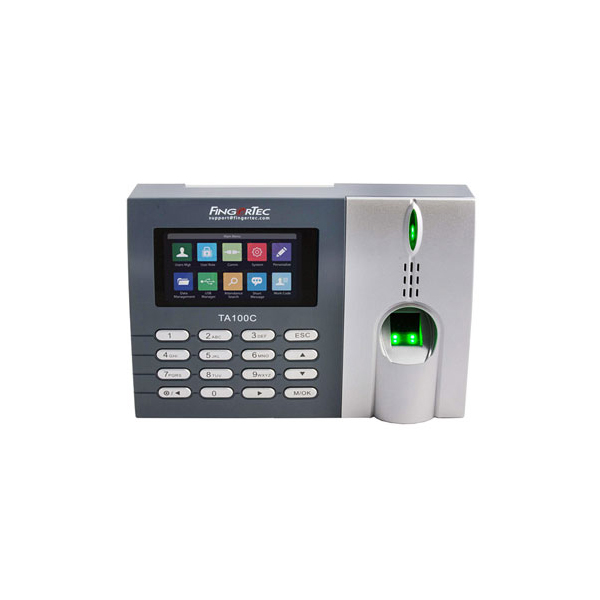

Description
Eliminate Buddy Punching
Card system doesn’t solve ‘buddy- punching’ problem where one employee can clock for another employee. Eliminate ‘buddy- punching’ by using user’s fingerprint as identity.
Cloud-Ready Technology
TA100C comes with the latest PUSH technology, suitable for FCC data storage and convenient for TimeTec TA. The technology eliminates the need for manual data download process.
Manage Data Easily
TCMS V3 is loaded with useful features complete with various reports for your business. Its data integration to 3rd party software is made available through the readily available SDK.
Full Colour Screen
This model comes with a full colour TFT screen. Display pictures corporate advertisements, screen savers and much more on the colour screen of the terminals.
Workcodes
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.
Data Management Simplified
FingerTec TA100C is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer.
Short Message Display
Alert your stuff by personalizing a short message to be displayed at the terminal when they verify.
Value for Money
This model was designed to be economical so that you are able to implement FingerTec solutions at an affordable cost.
SPECIFICATIONS |
|
| MODEL | TA100C |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER | Non coated optical scanner |
| MICROPROCESSOR | 800 MHz |
| MEMORY | 256MB flash memory & 128MB SDRAM |
| ALGORITHM | BioBridge VX 9.0 / BioBridge VX 10.0 |
| PUSH TECHNOLOGY | Yes |
| DIMENSION (L X W X H), mm | 190 x 52 x 140 |
| STORAGE | |
| Fingerprint templates | 8000 |
| Cards | N/A |
| Transactions | 200000 |
| ENROLLMENT & VERIFICATION | |
| Methods | Fingerprint (1:1, 1:N) & password |
| Recommended Fingerprint per user ID | 2 |
| Fingerprint placement | Any angle |
| Verification time (sec) | < 1 |
| FAR (%) | < 0.0001 |
| FRR (%) | < 1 |
| CARD TECHNOLOGY | |
| RFID: 64-bit, 125kHz, RF output power (EN300-330) | N/A |
| MIFARE: MFIS50/S70, 13.56MHz | N/A |
| HID: HID 1325, 26-bit, 125kHz | N/A |
| COMMUNICATIONS | |
| Method | TCP/IP, USB disk (Optional RS232, RS485, WiFi & GPRS) |
| Baud rates | 9600, 19200, 38400, 57600, 115200 |
| OPERATING ENVIRONMENT | |
| Temperature (°C) | 0 ~ 45 |
| Humidity (%) | 20 ~ 80 |
| Power input | DC5V 2A |
| TIME ATTENDANCE | |
| Siren | Built-in and external |
| Work codes | Yes |
| MULTIMEDIA | |
| Voice | Yes |
| Display | 3.0” 65k color TFT screen |
| Short messaging | Yes |
