Description
A Variety of Verification Methods
Although its recommended that you use fingerprint verification for more authentic records, the terminal also offers options for you to verify using a card or password, or even a combination of the two.
Shortcut Keys
Program these keys to take you to commonly used functions in just one step. Did we mention that we make things easy?
Manage Your Data Easily
Administration is easy with the Ingress software application. Ingress allows you to remotely manage door activity of all connected terminals, while containing time attendance functions for attendance monitoring.
Easy Terminal Syncing
With the option of TCP/IP, RS485 / RS232, USB flashdisk, or even WiFi (upon request), syncing your terminal is even easier than you think!
Supersized Capacity
Get up to 10000 fingerprint templates and 200000 transaction logs – more than enough to fulfill the requirements of an SME.
Built-In Alarm
Increase the security at your workplace by installing an external alarm, and be alerted during unexpected scenarios such as break-ins and fire emergencies
Workcodes
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.
Full Colour Screen
This model comes with a full colour TFT screen. Display pictures, corporate advertisements, screen savers and much more on the colour screen of the terminals.
SPECIFICATIONS |
|

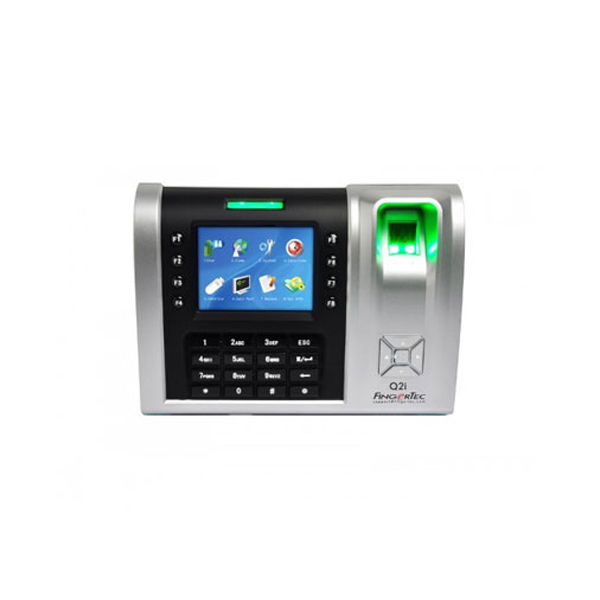

| MODEL | Q2i |
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER | Non coated optical scanner |
| MICROPROCESSOR | 800 MHz |
| MEMORY | 256 MB flash memory and 64 MB SDRAM |
| ALGORITHM | BioBridge VX 9.0 / VX 10.0 |
| DIMENSION (L X W X H), mm | 200 x 56 x 160 |
| STORAGE | |
| Fingerprint templates | 10000 |
| Cards | 10000 |
| Transactions | 200000 |
| ENROLLMENT & VERIFICATION | |
| Methods | Fingerprint (1:1, 1:N), Card & Password |
| Recommended Fingerprint per user ID | 2 |
| Fingerprint placement | Any angle |
| Verification time (sec) | < 1 |
| FAR (%) | < 0.0001 |
| FRR (%) | < 1 |
| CARD TECHNOLOGY | |
| RFID: 64-bit, 125kHz, RF output power (EN300-330) | Yes |
| MIFARE: MFIS50/S70, 13.56MHz | Make to order |
| HID: HID 1325, 26-bit, 125kHz | Make to order |
| COMMUNICATIONS | |
| Method | TCP/IP, RS232, RS485,USB disk (Optional WiFi, GPRS & 3G) |
| Baud rates | 9600, 19200, 38400, 57600, 115200 |
| Wiegand | 26-bit input/output |
| OPERATING ENVIRONMENT | |
| Temperature (°C) | 0 ~ 45 |
| Humidity (%) | 20 ~ 80 |
| Power input | DC 12V 3A |
| TIME ATTENDANCE | |
| Siren | Built- in (Optional – External) |
| Work codes | Yes |
| MULTIMEDIA | |
| Voice | Yes |
| Display | 3.5” 65k color TFT screen |
| Short messaging | Yes |
| ACCESS CONTROL | |
| EM lock driving output | DC12V 3A / relay output |
| Alarm output | NO / NC |
| Antipassback | Yes |
| VOICE / DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified, Cantonese, Thai, Spanish, Portuguese Portugal / Brazil, French, Russian,German, Italian, Turkish, Persian. |
| Other languages are available upon request. | |
