Description
Fast Paced & Versatile

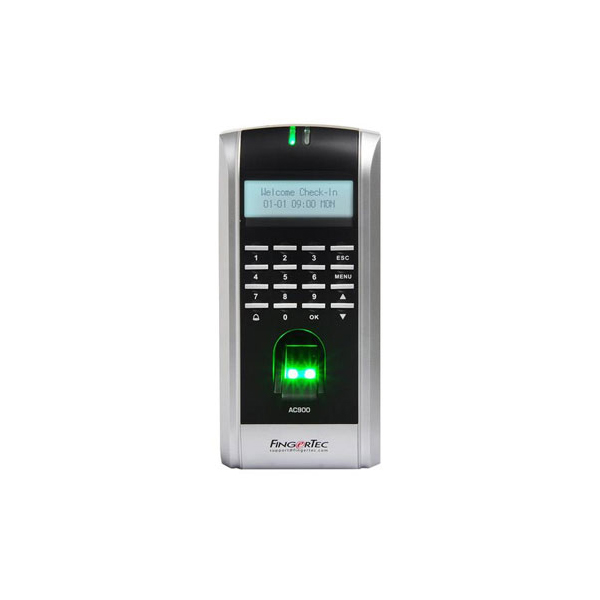

AC900 gives you an option of identity verification through finger print scanning or password. On top of that, fingerprint verification is done within a second!
Precise Recognition
AC900 uses minutiae matching technology that ensures only enrolled users are granted access.
Integrateable System
Have a different existing system in your organization? No problem, AC900’s user data can be exported to several formats for you to integrate with your current system.
Eliminate Buddy Punching
The weakness with the clock-in card system is that ‘buddy punching’ can occur where one employee can clock in the time for another employee if any of them are late. Eliminate this occurrence by using the unique perindividual fingerprint as a clock-in card!
User-Friendly
Any more user-friendly, and AC900 will have to speak to you. AC900 has a simple-to-use user interface and keypad.
Workcodes
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.
Specifications |
|
| SURFACE FINISHING | Acrylonitrile butadiene styrene (ABS) |
| TYPE OF SCANNER | Optical fingerprint scanner |
| MICROPROCESSOR | 400 MHz |
| MEMORY | 128MB flash memory and 32MB SDRAM |
| ALGORITHM | BioBridge VX 9.0/VX10.0 |
| DIMENSION (L X W X H), mm | 91 x 40 x 190 |
| STORAGE | |
| Fingerprint templates | 1500 |
| Transactions | 100000 |
| ENROLLMENT & VERIFICATION | |
| Methods | Fingerprint (1:1, 1:N), password |
| Recommended fingerprint per user ID | 2 |
| Fingerprint placement | Any angle |
| Verification time (sec) | <1 |
| FAR (%) | < 0.0001 |
| FRR (%) | < 1 |
| COMMUNICATIONS | |
| Method | TCP/IP, RS232, RS485 |
| Baud rates | 9600, 19200, 38400, 57600, 115200 |
| Wiegand | 26-bit output |
| OPERATING ENVIRONMENT | |
| Temperature (°C) | 0 ~ 45 |
| Humidity (%) | 20 ~ 80 |
| Power input | DC12V 3A |
| TIME ATTENDANCE | |
| Work codes | Yes |
| MULTIMEDIA | |
| Display | Black and white |
| ACCESS CONTROL | |
| EM lock driving output | DC12V3A / Relay output |
| Alarm output | NO |
| DISPLAY LANGUAGE (TERMINAL) | English (Standard), Arabic, Malay, Indonesian, Chinese (Traditional), Chinese (Simplified), Thai, Vietnamese, Korean, Spanish, Portuguese (Portugal), Portuguese (Brazil), Polish, French, Russian, German, Italian, Turkish, Persian, Slovak, Greek, Dutch, Hebrew, Romanian, Bulgarian. Other languages are available upon request. |
| SOFTWARE | Ingress |
