SVS – Storage Video Server
Recording Server, Playback Server, Or VMS Management Server
SVS Series 50 – 500 Cameras For Video Surveillance Systems
Fibrenetix SVS Series of purpose built video streaming servers, offer extremely good storage capacity, combined with high performance I/O controllers, optimised for video streaming.
In the history of the surveillance industry, there has never been more focus on Quality, Reliability and Cost Efficiency when it comes to selecting products for surveillance projects. Fibrenetix Storage Video Server (RS2, RS3 and RS9 Series) has been designed to meet these ever-growing needs.

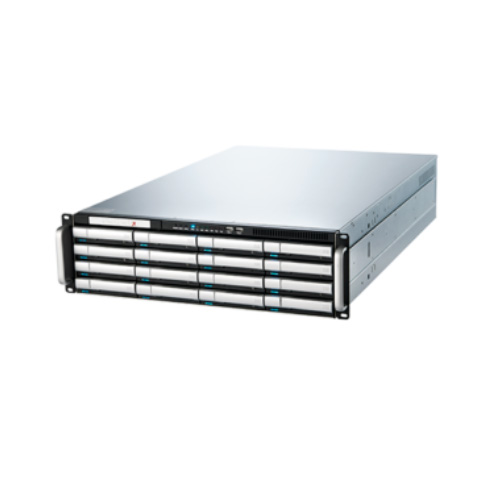

SVS RS9 – 2U And 3U Form Factor
The SVS is also available as an 8-bay server, with support for up to 200 cameras and a built-in storage capacity of up to 80TB per server, with expansion options via 2x 60-bay JBOD expansion units, offering a staggering 1.2 Petabyte of storage per server. Fibrenetix xRAID-6 video optimised RAID controller is an integral part of all our standard products, offering increased performance and camera count of more than 30% per server, compared to a standard server.
If multiple virtual machines on a multi-processor platform are required, Fibrenetix SVS 3U-16-bay, with dual 12-core processors, 512GB memory and a massive 160TB internal storage, meets the requirements of the 100-500 camera segment.
Tech Specs:
| S9 SERIES | RS9-1662 SERIES |
| Product Code | RS9-1662-xxx-M16-Ax |
| Processor | Intel® Xeon® Scalable CPU |
| Number of CPUs | 1 (upgradeable to 2) |
| Maximum Core per CPU | 24 |
| Memory (Min|Max) | 8GB – 2048GB |
| OS Storage (internal 2.5”) | 2x 240GB SSD |
| Storage Bays | 16x Hot-swap |
| Max. HDD Capacity Supported | 18TB |
| Maximum Raw Storage Capacity | 288TB |
| Max Capacity – SAS | 4.6PB |
| Max Capacity – Per IP San Controler | 9.2PB |
| Hardware RAID Levels | 0, 1, 3, 5, 6, 50, 60 |
| Optional 10GBps Support | Yes |
| Network | 2 |
| Graphics (Standard) | Aspeed AST2500 |
| USB Ports | 2x USB 3.0 – 2x USB 2.0 |
| Video Ports | 1 x VGA ports |
| Hot-swap Components | HDDs, PSUs, FANs |
| Operating System | Windows Storage Server 2016 |
| Power Supply | 2x 800W |
| Voltage | 100-127/200-240Vac |
| Dimensions – mm (D x W x H) | 700 x 444 x 132 (3U) |
| Net Weight | 23.4kgs |
| Operation Temperature | 10℃ ~ 35℃ |
| Certification | BSMI, CE, RCM, FCC(Class A) |
| Warranty Period | 3 Years |
| BTU/hr | 2735.36 |
