Description
Storage E-Series
Real Enterprise Class Storage With High Availability
Video Server For Large Data-Center And CCTV Solutions
Fibrenetix E8-Series offers highly scalable storage, specifically designed and developed to meet the demanding needs of medium-range to high-end surveillance applications.
The E8-Series is based around Fibrenetix high performance video streaming chip technology, offering at least 30% more performance than any other product in the market and at least 30% more cameras per storage controller.
The E8-Series with dual 10Gbit iSCSI connection has been designed and built to meet surveillance demand for hundreds of video streams and massive storage capacity, with long data retention periods and the smallest possible footprint. Each E8-series can service hundreds of megapixel cameras, with a storage capacity of up to 8 Petabytes per iSCSI controller.
A Scalable Technology
Additional E8 systems can be added to the storage network, offering scalability up to hundreds of Petabytes to meet the requirements for Homeland Security, Airports and City surveillance installations.
E88 Systems Offer Real Enterprise Class High Availability
The 16-bay E88-Series comes with a dual controller option which enables a fully redundant mode. All connection points and JBOD controllers also have dual controller support. Combined with hot-swap power supplies, fans and hard disk drives, the E88 systems offer real Enterprise class high availability.
E8-Series is also available with dual 8/16/32 Gbit Fibre Channel host connection.
Tech Specs:

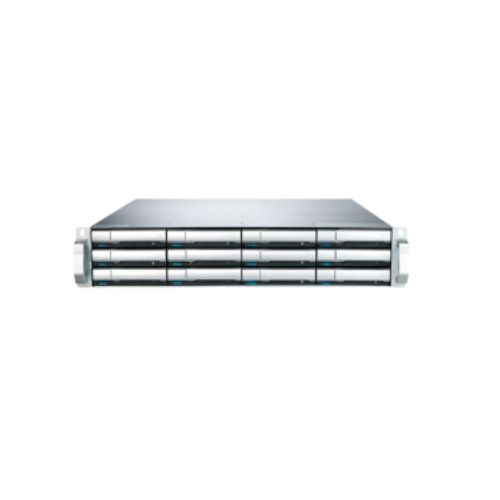

| E-SERIES | 2U |
| RAID Controller | Dual Core PPC476 1.2GHz – Dedicated I/O Processor |
| RAID Design | Cableless Intelligent Backplane Integration |
| Memory (Min|Max) | 4GB DDR4-800 (up to 8GB) |
| Storage Bays | 12x Hot-swap |
| Max. HDD Capacity Supported | 18TB |
| Maximum Raw Storage Capacity | 216TB |
| Max Capacity – Per IP San Controler | 9.2PB |
| Hardware RAID Levels | 0, 1, 0+1, 3, 5, 6, 30, 50, 60 |
| Host Bus Interface | 10Gbit/s via SFP+ or 8Gbit/s & 16Gbit/s Fibre Channel |
| Disk Bus Interface | 6Gbit/s SATA & 12Gbit/s SAS |
| Disk Bus Channels | 12 Independent Channels |
| Host Requirement | Host Independent and Transparent |
| Management Solution | RS232, Web-browser and SNMP |
| Hot-swap Components | HDDs, PSUs and Fan Modules |
| Operating System | Not Applicable (Hardware) |
| Power Supply | 2x400W |
| Voltage | 100-127 Vac, 200-240Vac 50/60Hz auto-sensing |
| Dimensions – mm (D x W x H) | 520 x 440 x 88 (2U) |
| Net Weight | 20.0kgs |
| Operation Temperature | 10℃ ~ 35℃ |
| Certification | BSMI, CE, RCM, FCC(Class A) |
| Warranty Period | 3 Years |
| BTU/hr | 1367.68 |
Applications
Schools, Malls, Banks, Buildings, Hospitals, Factories, Oil & Gas, Aviation, Military, Government, Enterprise class, Hotels.
