Description
Video Server For Mobile And Hazardous Environments
RAID 5 Video Server For Challenging Environments

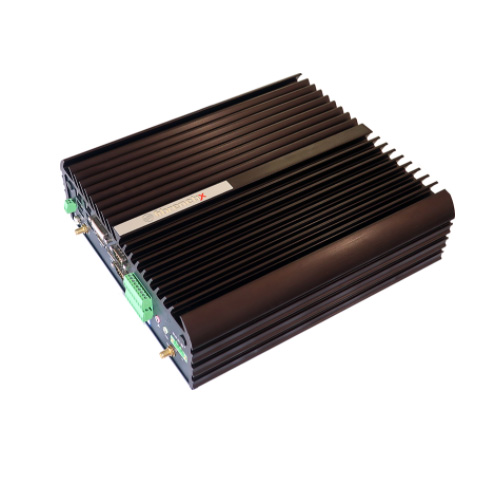

The Mobix-II is a robust and powerful Video Server for Demanding and Hazardous Environments. The Mobix-II can be equipped with 4x Hard Disk Drives and supports natively RAID 5.
Fibrenetix MOBIX-II is a fully-ruggedized video server, ideal for challenging environments where traditional computers cannot be deployed.
MOBIX-II video server is designed to operate in many demanding configurations, at high temperatures, in desert and factory environments.
Up to four internal 2.5” SSDs of 7.6 Terabytes each of storage capacity (Raw Storage of 30.4TB). Main Applications Public Safety, Transportation ATM Oil and Gas Construction Water Industry.
Technical Specs:
| MOBIX SERIES | MOBIX II |
| Processor | Intel® Core®i3/i5/i7 or Pentium® Processor |
| Memory (Min|Max) | 2x DDR4 1866/2133MHz SODIMM – Max up to 32GB |
| OS Storage (internal 2.5”) | 2 |
| Data Storage | 2 |
| Hardware RAID Levels | RAID 0, 1, 5, 10 |
| Network Ports | 2 × Gigabit Ethernet ports |
| POE Network Ports | 4 x POE – (25.5W) – A2 and A12 models |
| SIM Sockets | 4 x SIM Socket (MB-502), 3 x SIM Socket (MB-506) |
| GNSS/GLONASS | GPS/GLONASS/BeiDou/Galileo/QZSS (Optional) |
| Network | 2 x GbE RJ45 (all models) |
| M12 Connectivity | In option |
| I/O Ports | 2 x RS-232/422/485 (internal) |
| Power Ignition Management | Yes (except for MB-502) |
| USB Ports | 6 x USB 3.0, 2 x USB 2.0 |
| Video Ports | 1 x DVI-I, 2x Display Ports, VGA split cable |
| Hot-swap Components | HDDs |
| Operating System | Windows 10 |
| Power Supply | Optional AC/DC 24V/5A, 120W |
| Voltage | 9 to 48 VDC |
| Dimensions – mm (D x W x H) | 261 x 240 x 79 |
| Net Weight | 3.3 kg |
| Operation Temperature | -25℃ ~ 70℃ |
| Certification | CE, FCC Class A |
| Warranty Period | 3 Years |
| BTU/hr | 410.31 |
Applications
Telehealth, Banking, Retail, Internet of Things, Smart Cities, Remote Security, General IT, Harsh Environment
