Description
Server & NVR For 2 To 16 Cameras
Video Server For Mobile And Hazardous Environments

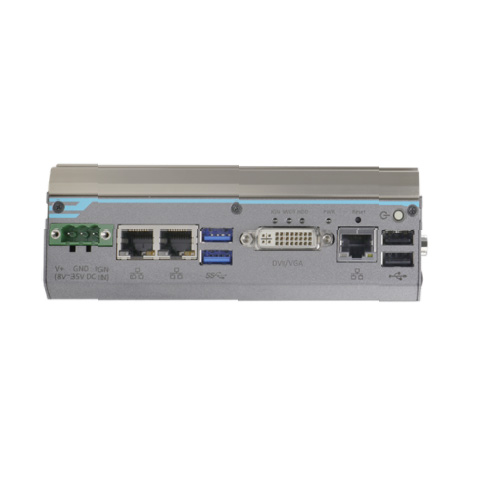

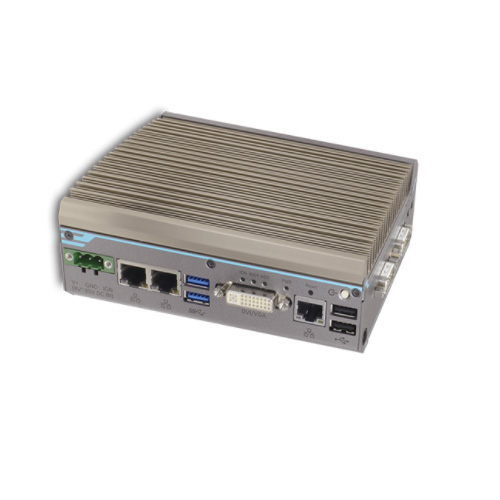

Ultra-Compact fanless video Server with build-in POE ports. Ideal for in-vehicle CCTV or as a compact Server for ATM’s and hazardous environments. MOBIX NANO is a ruggedized video Server in an Ultra-compact form factor making it ideal for environments where normal Servers can not operate. With a wide temperature range from -25°C to 70°C, MOBIX NANO is the ideal Server in most hazardous environments.
MOBIX NANO can work either as a mobile device in vehicles or as a powerful video and access control Server for ATM’s (cash point machines). Low voltage DC input offers support for Solar Power or in-vehicle power.
MOBIX NANO – Enough Capacity Of Up To 30 Days Recording
Like the MOBIX, the MOBIX NANO has no moving parts and is completely fan less. MOBIX NANO has high tolerances to vibration and shock. The Dual-core processor offers support for up to 24 Cameras recording in HD resolution. The build in mSATA storage disks has enough capacity of up to 30 days recording, Making this little powerhouse one of the best in its Class.
MOBIX NANO is the ideal video Server for Fibrenetix Smart ¬Vehicle Management Solution (SVMS).
Tech Specs:
|
MOBIX SERIES |
NANO |
| Processor | Intel® ApolloLake Pentium™ N4200 Ultra-Compact |
| Memory (Min|Max) | Up to 8GB DDR3L-1866 |
| OS Storage (internal 2.5”) | 1 |
| Data Storage | – |
| Hardware RAID Levels | – |
| Network Ports | 3x Gigabit Ethernet ports by Intel® I210 GbE |
| Memory (Min|Max) | Up to 8GB DDR3L-1866 |
| SIM Sockets | 1 x SIM Socket |
| GNSS/GLONASS | GPS/GLONASS/BeiDou/Galileo/QZSS (Optional) |
| Network | 3 x GbE RJ45 (all models) |
| I/O Ports | 1x RS-232/422/485 ports (COM1) + 2 x Internal |
| Power Ignition Management | Yes (except for MB-502) |
| USB Ports | 2 x USB 3.0, 2 x USB 2.0 |
| Video Ports | 1 x DVI-I Connector |
| Operating System | Windows 10 |
| Power Supply | Optional AC/DC 24V/5A, 120W |
| Voltage | 8 to 35 VDC |
| Dimensions – mm (D x W x H) | 108 x 153 x 56 |
| Net Weight | 1.0 kg |
| Operation Temperature | -25℃ ~ 70℃ |
| Certification | CE, FCC Class A |
| Warranty Period | 3 Years |
| BTU/hr | 410.31 |
