Description
Versatile and efficient performance: Drive rapid response times with the latest Intel® Xeon® processor E5-2600 v3 product family, DDR4 memory and seven I/O slots.

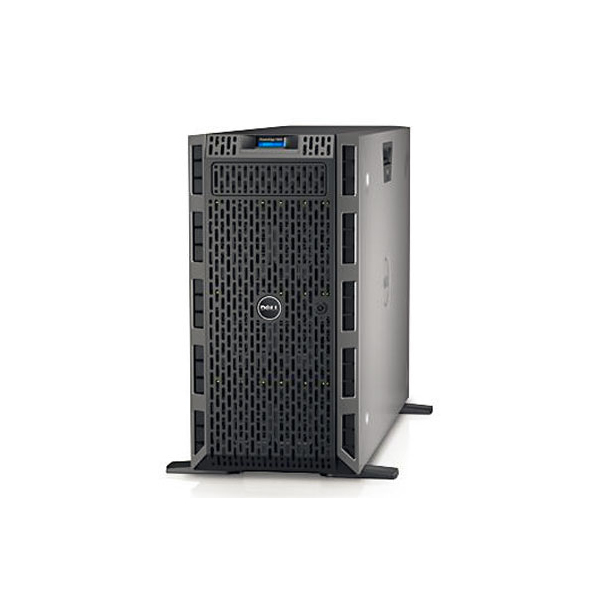

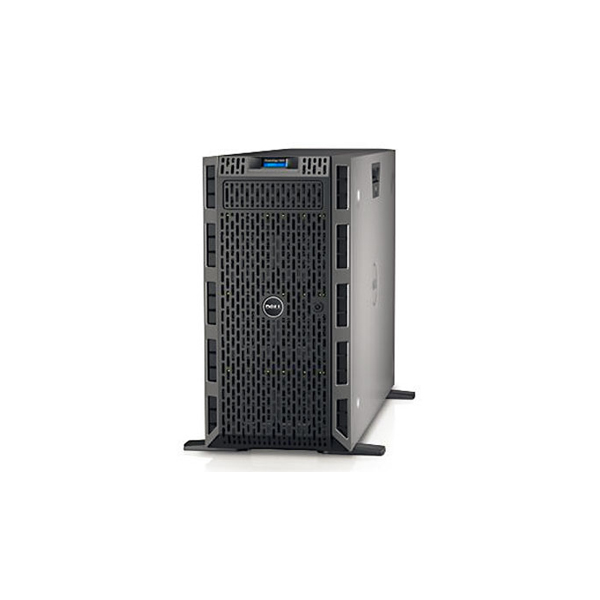

Expanded capacity, unprecedented capability: With support for up to 50 percent more hard drives than previous generations, the PowerEdge T630 brings new capabilities to small and medium businesses and remote offices running mail and messaging, medical imaging, server and desktop virtualization, and budget-conscious graphical rendering. Supporting up to 32 x 6.3cm(2.5) or 18 x 8.8cm(3.5) hard drives, the T630 can store more mailboxes of larger sizes can dramatically lower your cost per mailbox. Flexible storage configurations allow you to meet exacting workload requirements, while ample drive space allows for cost-effective, in-server expansion.
Fast storage, fast insights: Up to four NVMe Express Flash PCIe SSDs and the optional 12Gb PowerEdge RAID Controller (PERC9) make the PowerEdge T630 ideal for a wide range of IOPs-hungry workloads including database, enterprise resource planning (ERP) and decision support. For increased application acceleration, the T630 can take advantage of optional SanDisk® DAS Cache for even faster data access. In-server storage tiering and multi-mode RAID options also help optimize virtual storage for VMware® vSAN™ and Microsoft Storage Spaces.
Powerful GPU acceleration: From graphical rendering to implementing virtual desktops, support for up to four optional GPU accelerators enables additional performance and capability.
Processor
Intel® Xeon® processor E5 2600 v4 product family
Operating System
Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft® Windows Server® 2016
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Chipset
Intel C610 series chipset
Memory
Up to 1.5TB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
Embedded Hypervisor (Optional)
Microsoft® Windows Server® 2008, with Hyper-V®
VMware® ESXi
Citrix XenServer
Storage
SAS, SATA, Near-line SAS, SSD, PCIe SSD:
18 x 8.8cm (3.5) HDD – up to 72TB via 4TB hot-plug SAS hard drives
32 x 6.3cm (2.5) HDD – up to 32TB via 1TB hot-plug SAS hard drives
Up to 4 optional Express Flash PCIe SSD’s
Drive Bays
Internal hard drive bay and hot-plug backplane:
Up to 8 x 8.8cm (3.5) SAS, SATA, Near-Line SAS,SSD, PCIe SSD drives with optional flex bay
Up to 18 x 8.8cm (3.5) SAS, SATA, Near-Line SAS,SSD drives without optional flex bay
Up to 16 x 6.3cm (2.5) SAS, SATA, Near-line SAS, SSD, PCIe SSD drives with optional flex bay
Up to 32 x 6.3cm (2.5) SAS, SATA, Near-Line SAS,SSD drives with optional flex bay
Slots
Slot 1: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)
Slot 2: Full Length, Full Height, PCH – PCIe Gen2 x4 (x8 connector)
Slot 3: Full Length, Full Height, CPU1 – PCIe Gen3 x16 (x16 connector)
Slot 4: Half Length, Full Height, CPU2 – PCIe Gen3 x8 (x8 connector)
Slot 5: Full Length, Full Height, CPU2 – PCIe Gen2 (DMI) x4 (x8 connector)
Slot 6: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)
Slot 7: Full Length, Full Height, CPU2 – PCIe Gen3 x16 (x16 connector)
Slot 8: Half Length, Full Height, CPU1 – PCIe Gen3 x8 (x8 connector)
RAID Controllers
Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Network Controller
2 x 1Gb
Communications
Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power
Titanium efficiency 750W AC power supply
Gold efficiency 1100W DC power supply
Platinum efficiency 495W, 750W, 1100W or 1600W AC power supply
Availability
ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Video Card
Video Type :Integrated Integrated Matrox G200 with iDRAC8
Video Memory: 16 MB shared with iDRAC8 application memory
GPUs – Support for up to four optional 300W internal GPU processing accelerators
Chassis
Form Factor: 5U
Height:8.73cm (3.44)
Width:48.2cm (18.98)
Depth:75.09cm (29.56)
Max Weight:
T630 full system with 6.3cm (2.5) HDD:
Max 6.3cm (2.5) x16 (6 fans) 37.57Kg/82.75lb
Max 6.3cm (2.5) x32 (6 fans) 40.55Kg/89.32lb
T630 full system with 8.8cm (3.5) HDD:
Max 8.8cm (3.5) x18 (6 fans) 49.65 Kg/109.36 lb
Management
Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
