Description
Processor
1x Full AMD SP3 processor stack TDP, up to 180W, up to 32 cores per processor
Bezel
Optional LCD or Security Bezel
Dimensions & Weight
Depth:
64.71cm (25.48 in)
Width:
43.4 cm (17.09 in)
Height:
8.68 cm (3.42 in)
Drive Bays
Front Drive Bays:
Up to 24 x 2.5” SATA/SAS/NVMe or up to 12x 3.5” SAS/SATA HDD
Rear Drive Bays:
Up to 2×3.5” SAS/SATA HDD
Embedded Management
iDRAC9 with Lifecycle Controller (no power capping)
iDRAC Direct
iDRAC REST API with Redfish support,
Quick Sync 2 BLE/wireless module
Integrations and Connections
Microsoft® System Center, VMware® vCenter™, BMC Software (available from BMC) Nagios Core and Nagios XI, HPE Operations Manager i (OMi)
I/O and Ports
Network daughter card options:
Optional LOM:
2 x 1GE or 2 x 10GE or 2 x 10GE SFP+
Front ports:
Video, 2 x USB 2.0, dedicated iDRAC Direct Micro-USB
Rear Ports:
LOM: 2 x 1GE, Video, Serial, 2 x USB 3.0, dedicated iDRAC network port
Riser Options with up to 4 x Gen3 slots; 3 x16 lanes and 1 x8 lanes
Memory*
16 DDR4 DIMMs, RDIMM, LRDIMM
OpenManage Software
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
Power Supplies
Titanium 750W, Platinum 495W, 750W, 1600W, and 1100W 240HVDC 750W 336-380DC 1100W addition for China and Japan only
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Supported Operating Systems
Microsoft Windows Server® 2016
Red Hat® Enterprise Linux 7.4
VMware® vSphere 2016 U1 (ESXi 6.5 U1)
Microsoft Windows Server® 2012 R2
Storage Controllers
Internal Controllers:
PERC H330, H730p, H740p, HBA330
Boot Optimized Storage System:
HW RAID 2 x M.2 + Internal USB + Internal Dual SD Module
External PERC (RAID):
H840
External HBAs (non-RAID):
12Gbps SAS HBA
12Gbps PERC9 or 10 series, mini PERC x8 slot
Security
TPM 1.2/2.0 optional, Digitally signed firmware
Silicon Root of Trust, Secure Boot, System Lockdown, Secure Erase
Breakthrough performance for storage-intensive workloads

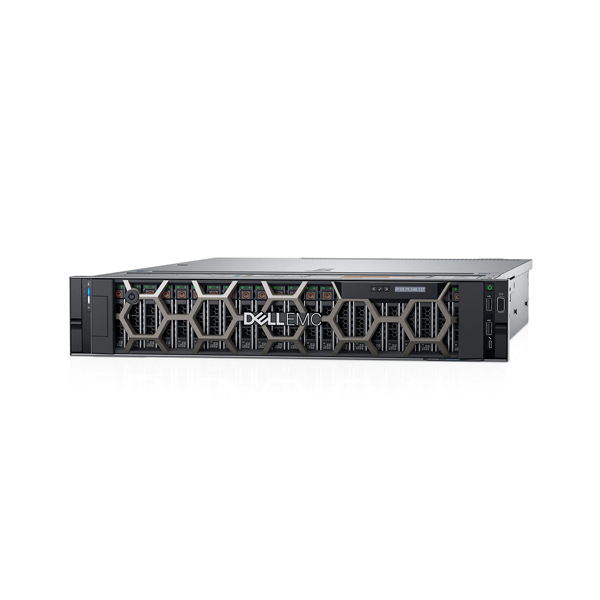

The PowerEdge R7415 delivers cost-efficient scalability in a single-socket design. Add plenty of storage and memory capacity to meet the needs of demanding workloads. With the enterprise-class AMD EPYC™ processor, the R7415 delivers software-defined storage or business analytics in a single-processor design.
Memory and I/O flexibility with up to 16 DDR4 DIMMs and 128 lanes of PCIe.
- Rich storage performance with up to 24 NVMe SSDs.
- Up to 1 terabyte memory capacity for in-line memory and analytics.
