Description
Processor
1x Full AMD SP3 processor stack TDP, up to 180W, up to 32 cores
Bezel
Optional LCD bezel or Security Bezel
Dimensions & Weight
Depth:
8×2.5” is 60.65cm (23.88 in.)
4×3.5” and 10X2.5” is 65.72cm (25.87 in.)
Width:
43.4 cm (17.09 in.)
Height:
4.28 cm(1.69 in)
Drive Bays
Front drive bays: Up to 10 x 2.5″ SAS/SATA/NVME or up to 8 x 2.5″ SAS/SATA or up to 4 x 3.5″ SAS/SATA HDD
Embedded Management
iDRAC9 with Lifecycle Controller (no power capping)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module
Integrations and Connections
Microsoft® System Center, VMware® vCenter,™ BMC Software (available from BMC)
Nagios Core and Nagios XI, HPE Operations Manager i (OMi)
I/O and Ports
Network daughter card options:
Optional LOM:
2 x 1GE or 2 x 10GE or 2 x 10GE SFP+
Front ports:
Video, 1 x USB 2.0, dedicated iDRAC Direct USB
Rear Ports:
LOM: 2 x 1GE, Video, Serial, 2 x USB 3.0, dedicated iDRAC network port
Riser options with up to 2 x Gen3 slots; 2 x16 lanes
Memory*
16 DDR4 DIMM slots, Supports RDIMM, LRDIMM
OpenManage Software
OpenManage Enterprise (available soon)
OpenManage Essentials
OpenManage Mobile
Power Supplies
Platinum 550W, Bronze 450W
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Supported Operating Systems
Microsoft Windows Server® 2016
Red Hat® Enterprise Linux 7.4
VMware® vSphere 2016 U1 (ESXi 6.5 U1)
Microsoft Windows Server® 2012 R2
Storage Controllers
Internal Controllers:
PERC H330, H730p, H740p, HBA330
Boot Optimized Storage System:
HW RAID 2 x M.2 + Internal USB + Internal Dual SD Module
External PERC (RAID):
H840
External HBAs (non-RAID):
12Gbps SAS HBA
12Gbps PERC9 or 10 series, mini PERC x8 slot
Security
TPM 1.2/2.0 optional
Cryptographically signed firmware
Silicon Root of Trust, Secure Boot, System Lockdown, Secure Erase
Drive transformation with Dell EMC PowerEdge servers

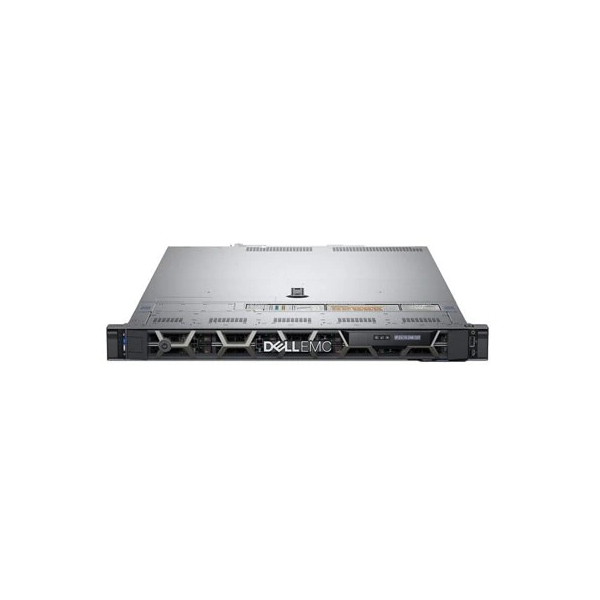

Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The PowerEdge R6415 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands.
- Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell EMC ScaleIO Ready Node
- Maximize storage performance with up to 10 NVMe SSDs
- Scale compute resources with the AMD EPYC microprocessor delivering up to 128 PCIe lanes for high bandwidth and low-latency access
