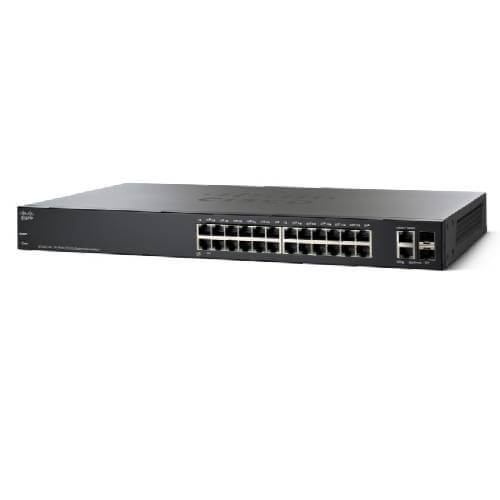

Cisco SF220-24 Smart Switch

A 24-port Fast Ethernet (10/100) Smart Managed switch featuring L2 features, strong performance, and dependability is the Cisco SF220-24-K9-NA Switch. To create a strong business network, it provides a number of features including VLANs, QoS, link aggregation, and more. Simple, browser-based tools simplify setup and configuration.

It offers exceptional value by offering thorough features developed for expanding organisations while preserving the accessibility of smart switches. This switch, which is a cheap smart switch with security, performance, and ease of use to aid in the development of a reliable business network, is a part of Cisco’s small and midsize company portfolio.

Description

Specifications

Device type: Switch – 24 ports
Enclosure type: Desktop, rack-mountable – 1U
Ports: 24 x 10/100 + 2 x combo Gigabit SFP
Power over Ethernet (PoE): N/A
Performance: Switching capacity: 6.55 Mpps Forwarding performance (64-byte packet size): 8.8 Gbps
MAC address table size: 8192 entries
Capacity: 256 active VLANs
Remote management protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Jumbo frame support: 9 KB
Authentication method: Secure Shell (SSH), RADIUS, TACACS+
Features: Layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, IGMP Querier,
Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing,
Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, IPv6 support, SNTP support,
STP support, RSTP, MSTP, TFTP support, HTTPS, QoS, access control list, QinQ VLAN, guest VLAN,
auto voice VLAN, GVRP/GARP, BPDU Guard, SSH, SSL, Jumbo Frames support,
MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol
Compliant standards: IEEE 802.3, 802.3u, 802.3z, 802.3az Energy Efficient Ethernet,
802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1x, 802.1w RSTP, IEEE 802.1s MSTP
RAM: 128 MB
Flash memory: 32 MB
Status indicators: Link activity, port transmission speed, system
Interfaces: 24 x 10BASE-T/100BASE-TX – RJ-45 2 x 10BASE-T/100BASE-TX/1000BASE-T – RJ-45 2 x SFP (mini-GBIC)
Power device: Power supply – internal
Voltage required: 100-240 V, 50-60 Hz, Internal
Width: 17.3 in (440 mm)
Depth: 7.9 in (201 mm)
Height: 1.7 in (44 mm)
Weight: 5.73 (2.6 kg)
Rack mounting kit: Included
Compliant standards :UL 60950, FCC Part 15 A, CSA 22.2
Localization: English, Chinese (simplified)
Minimum operating temperature :32F (0c)
Maximum operating temperature: 122F (50C)
Humidity range operating: 10% to 90% (relative, non-condensing)
Minimum storage temperature: -4F (-20C)
Maximum storage temperature: 158F (70C)
Humidity range storage :10% to 90% (relative, non-condensing)

Additional information

Brand	Cisco
