Description
Overview:

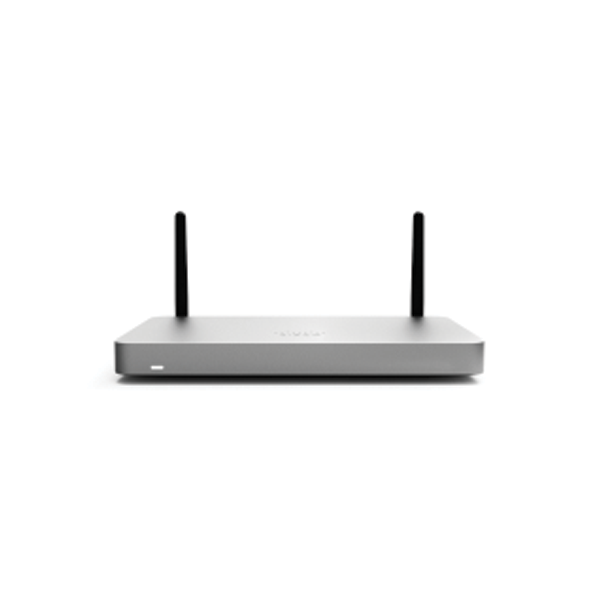

Lockdown your network with the Cisco Meraki MX67W cloud-managed security & SD-WAN appliance, which includes 802.11ac Wave 2 Wi-Fi. This device is ideal for small retail branches or clinics, as it can routinely support up to 50 users and has a stateful firewall throughput of up to 450 Mbps. It supports up to 50 simultaneous VPN sessions for completely secure data transfer and has five Gigabit Ethernet interfaces for connecting to a variety of devices. Because the MX is entirely cloud managed, installation and remote management are a breeze. The MX provides a comprehensive suite of security and network services, including threat management and SD-WAN capabilities, eliminating the need for multiple appliances. Your company can set up its retail outlets or offices in a central location.
Product Highlights
- Recommended for small branch networks with up to 50 users
- Up to 600 Mbps of stateful firewall throughput
- Integrated Content Filtering, SNORT® intrusion detection / prevention and Cisco Advanced Malware Protection (AMP) features available with purchase of Advanced Security License
- 4 x GbE ports for printers, phones and other wired devices
- 1 x GbE WAN port and ability to repurpose one of the LAN ports for failover or load balanced internet connections
- Integrated Wireless with dual-band, dual-concurrent, 2.4 & 5 GHz 2-stream 802.11ac Wave 2 and 802.11n, up to 1.3 Gbps throughput
- Auto VPN for intelligent site-to-site VPN connectivity
- 802.1x port authentication for wired devices
- Layer 7 application traffic shaping and prioritization
- Layer 3 firewall to separate corporate data from personal traffic
- Up to 4 SSIDs with integrated enterprise security and personal / guest access
- Self-configuring, plug-and-play deployment
- Small form factor design for desktop or wall mounting locations
Specifications:
Weight: 2.8 lbs
Dimensions: 6.5 × 9.4 × 1.1 in
License: SDWan-Plus, No License, Advanced, Enterprise
Duration: Hardware Only, 1 Year, 3 Years, 5 Years, 7 Years, 10 Years
Product Description: Cisco Meraki MX67W – security appliance
Device Type: Security appliance
Form Factor: Desktop
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band: 2.4 GHz, 5 GHz
Performance: Firewall throughput: 450 Mbps u00a6 VPN throughput: 200 Mbps u00a6 Advanced security throughput: 300 Mbps
Capacity: Maximum number of users: 50
Included Accessories: Mounting kit
Connectivity Technology: Wireless, wired
Data Transfer Rate: 1.3 Gbps
Network / Transport Protocol: IPSec, DHCP
Routing Protocol: Static IP routing, MPLS
Features: Firewall protection, DHCP support, NAT support, load balancing, layer 7 switching, VLAN support, traffic shaping, content filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), firmware upgradable, wall mountable, IPSec Virtual Private Network (VPN), Quality of Service (QoS), MPLS VPN, 3G/4G USB Dongle Support, static routing, 802.1x authentication, Link Aggregation, VPN client, IP Security (IPSec) support, DMZ support
Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
Antenna: External
Antenna Qty: 2
Interfaces: 4 x 1000Base-T – RJ-45 u00a6 1 x 1000Base-T – RJ-45 (WAN) u00a6 1 x USB 2.0 – Type A
Cables Included: 2 x network cable
Power Device: External power adapter
Installed Qty: 1
Max Supported Qty: 1
Power Provided: 18 Watt
Min Operating Temperature: 32 u00b0F
Max Operating Temperature: 113 u00b0F
Humidity Range Operating: 5 – 95% (non-condensing)
