Description
General

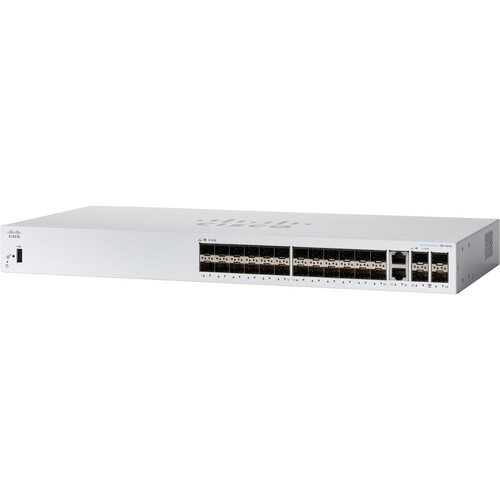

Device Type: Switch – 24 ports – L3 – Managed
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x Gigabit SFP + 2 x combo Gigabit Ethernet/Gigabit SFP + 2 x Gigabit SFP (uplink)
Performance: Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps
Capacity: RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size: 16K entries
Jumbo Frame Support: 2KB
Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm: SSL
Authentication Method: Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features: Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor: X ARM: 800 MHz
RAM: 512 MB
Flash Memory: 256 MB
Status Indicators: Status, link/activity/speed
Expansion / Connectivity
Interfaces: 28 x 1000Base-X SFP ¦ 2 x 1000Base-T RJ-45 ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power
Power Device: Internal power supply
Voltage Required: AC 100-240 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
MTBF: 258,544 hours
Compliant Standards: UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localisation: Kuwait, Qatar, Saudi Arabia, Hong Kong, Malaysia, Singapore, United Kingdom
Dimensions & Weight
Width: 44 cm
Depth: 20.3 cm
Height: 4.4 cm
Weight: 2.7 kg
