Description
Features

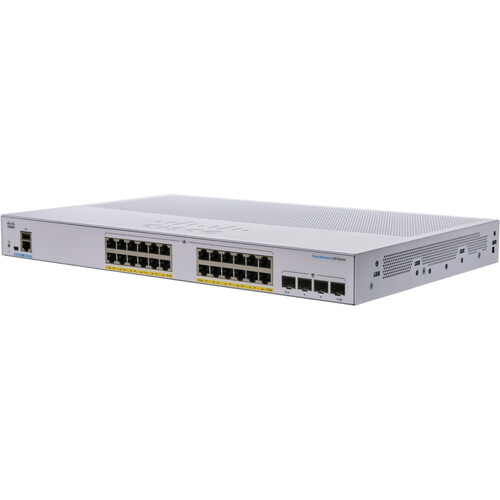

- 24-port 10/100/1000 Mbps Gigabit Ethernet switch + 4 SFP
- 24 PoE/PoE+ ports with 195 Watts budget
- SupportedSFP modules: MGBSX1, MGBLH1, MGBLX1, MGBT1, GLC-SX-MMD, GLC-LH-SMD, GLC-BX-U, GLC-BX-D, GLC-TE
- Layer 2 manageable switches and Layer 3 static routing (simplified web interface) or centralized management (Cisco Business Dashboard)
- Total switching capacity: 56 Gbps
- IPv6 compatible
- QoS management, basic security, VLAN, IPv6
- Automatic deployment of voice systems across the network (Auto Smartports)
- Static IP routing (32 IPv4 Routes, 255 VLANs, 8K Macs)
- EEE (Energy Efficient Ethernet) – Green switch with energy saving features
Specifications
Switch Type : Layer 2 / Layer 3 static routing Smart Switch
Ports: 24 10/100/1000 PoE+ ports, 4 Gigabit SFP
Ports support PoE: 24-port PoE+
Power Dedicated to PoE : 195W
LEDs: System, Link/Act, PoE, Speed
Console port : Cisco Standard mini USB Type-B / RJ45 console port
USB slot : USB Type-A slot for file and image management
Cabling type : UTP Category 5e or better for 1000BASE-T
CPU : 800 MHz ARM
Memory : DRAM 512 MB / Flash 256 MB
Throughput : 41.66 mpps (64-byte packets)
Switching capacity : 56.0 Gbps
MAC address table : 8K
