Specifications
Capacity in Millions of Packets per Second (mpps) (64-byte packets): 14.88
Switching Capacity in Gigabits per Second (Gbps): 20.0

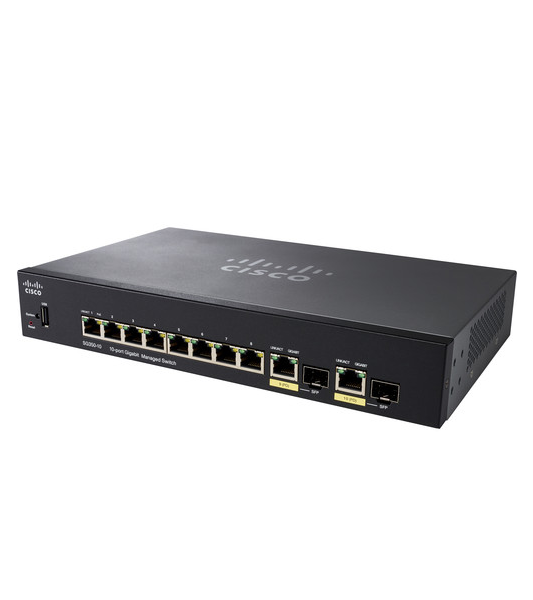

Total System Ports: 10 x Gigabit Ethernet
RJ-45 Ports: 8 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP]): 2 x Gigabit Ethernet combo
Packet Buffer: 1.5 MB
Unit dimensions (W x D x H): 268 x 272 x 44 mm (10.56 x 10.71 x 1.73 in)
Layer 3
IPv4 routing: Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces: IPv6 routing
Wirespeed routing of IPv6 packets: Layer 3 Interface
Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface: Classless Interdomain Routing (CIDR)
Support for classless interdomain routing: RIP v2
Support for Routing Information Protocol version 2 for dynamic routing: Policy-Based Routing (PBR)Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL): DHCP Server
Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes: Support for DHCP options
DHCP relay at Layer 3: Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay: Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets
Quality of Service
Priority levels: 8 hardware queues
Scheduling: Strict priority and Weighted Round-Robin (WRR)
Rate limiting: Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing
Congestion avoidance: A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
iSCSI traffic optimization: A mechanism for giving priority to iSCSI traffic over other types of traffic
Green (power efficiency)
Energy Detect: Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up
Cable length detection: Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE Compliant (802.3az): Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs: LEDs can be manually turned off to save on energy
Time-based port operation: Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE: PoE power can be on or off based on user-defined schedule to save energy
General
Jumbo frames: Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table: 16K addresses
Hardware
USB slot: USB Type-A slot on the front panel of the switch for easy file and image management
Buttons: Reset button
Cabling type: Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs: System, Link/Act, PoE, Speed
Flash :256 MB
CPU: 800 MHz ARM
DRAM: 512 MB
Environmental
Storage temperature: -13° to 158°F (-25° to 70°C)
Operating humidity: 10% to 90%, relative, noncondensing
Storage humidity: 10% to 90%, relative, noncondensing
