Description
Product Overview:

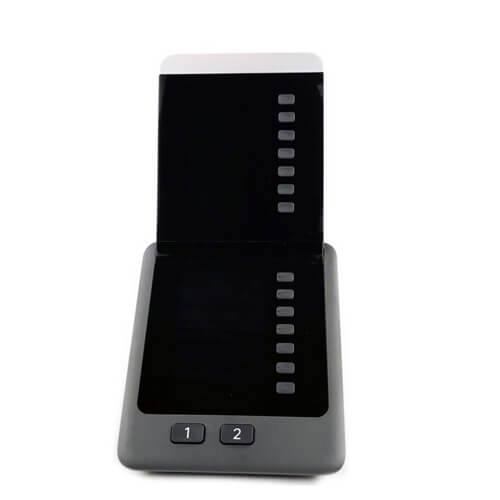

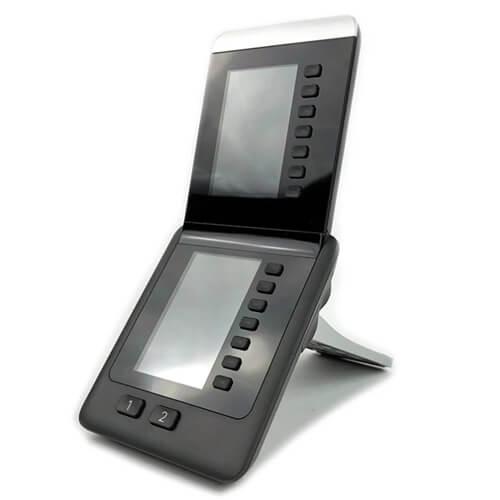

Administrative assistants and others who must monitor and manage the status of calls rely on call coverage. It necessitates the ability to instantly determine the status of multiple lines in addition to those provided by the Cisco IP Phone 8851 and 8861 models. The Cisco IP Phone 8800 Key Expansion Module adds additional buttons and a colour LCD display to the capabilities of the Cisco IP Phone 8851 and 8861 models. This key expansion module adds 18 physical keys as well as access to 18 more keys via the page keys, for a total of 36 additional keys. Up to three Cisco IP Phone 8800 Key Expansion Modules can be connected to the IP Phone 8861, and up to two Cisco IP Phone 8800 Key Expansion Modules can be connected to the IP Phone.
Features and Benefits:
The large LCD display of the Cisco IP Phone 8800 Key Expansion Module allows for quick and easy identification of associated buttons. Using the settings menu of the IP Phone 8851 and 8861 models, you can adjust the brightness of the individual key-expansion-module LCD according to your preference.
The primary function of the Cisco IP Phone 8800 Key Expansion Module is to provide additional keys for directory numbers, speed dial, or programmable feature keys to the IP Phone 8851 and 8861. These keys are illuminated, and when configured as directory numbers or shared-line keys they allow for easy identification of line status. The Cisco IP Phone 8800 Key Expansion Module is an ideal call-coverage tool. It provides features that are similar, but not intended to be directly comparable to those of traditional direct station selection/busy lamp field (DSS/BLF) modules, therefore it is neither an operator nor an attendant console.
The two illuminated page buttons below the Cisco IP Phone 8800 Key Expansion Module display allow you to shift between the first and second page of 18 buttons, providing access to all 36 keys.
Specifications
Power : 48 VDC, 117 mA maximum
Buttons : 18 additional illuminated buttons (36 total)
Interfaces : LCD display
Color : Yes
Compatible With : Cisco IP Phone 8851, 8861
Model Number : CP-8800-V-KEM
Part Number : CP-8800-V-KEM, CP-8800-V-KEM=, CP-8800-V-KEM-RF
Condition : Seller refurbished
