Description

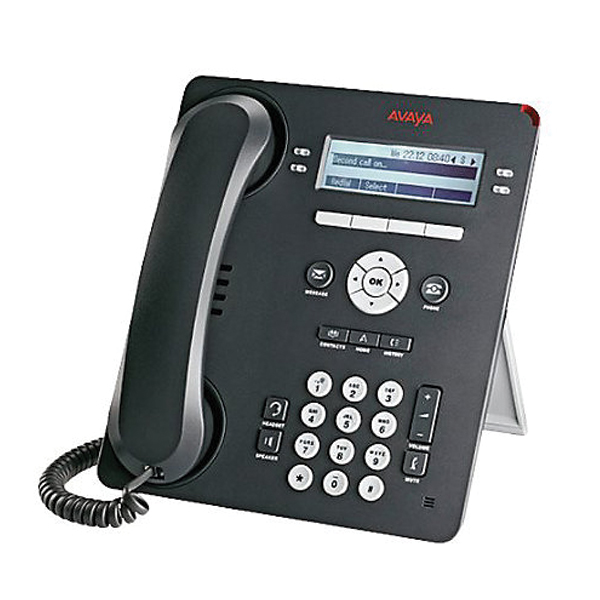

The Avaya 9504 Digital Deskphone is a remarkable phone for regular people. Everyday users are individuals who use the deskphone as one of several communication tools—in other words, they are light users with simple needs. Everyday users are typically cubicle employees or salespeople in a retail setting.
Functionality
The 9504 digital desk phone provides what everyday users need.
Display
The Avaya 9504 has a 4-line X 32-character display with white backlight.
Hands-free calling
The Avaya device features an integrated, high-performance speakerphone for hands-free calling.
Easy to operate
The controls of the Avaya 9504 have a Context-sensitive interface, 4-way navigation cluster and 4 softkeys that simplify ease of use. The phone also has 10 fixed function keys for common tasks (e.g. contacts, history, transfer etc.
Next to the display are four programmable three-level function buttons (total of 12 button positions), each with dual red-green LEDs to indicate status
Key features
- Digital Phone for Avaya IP Office Release 7.0 or higher
- Full duplex hands-free speaker
- Headset connector (RJ9 – HIS cable)
- Storage for 100 contacts
- 10 fixed function keys
- Large 4-line, 32-character LCD display with white backlight
- Four programmable function buttons that can be managed on three levels (with a total of 12 positions), with dual LED indicators (red-green) showing status
- Four contextual programmable buttons below the display
- 4-way navigation key
- Full access to Avaya IP Office features and call descriptions
- 10 fixed function keys to perform common tasks (eg contacts, history, voicemail, callback, transfer and call forwarding
- Desk stand with two positions
- Wall mounting possible (with optional kit)
- Dimensions: 205 x 204 x 161 mm
- Weight: 926 gr.
Avaya 9504 Digital Phone Compatibility
- Avaya IP Office version 7.0 or higher
- Requires available digital extension port on the IP Office
- PAY ATTENTION! NOT COMPATIBLE with Avaya Aura Communication Manager
Package contents
- Avaya 9504 Digital device (second chance in new condition)
- Telephone handset with coiled cord
- Desk Stand
- Connection cable ( RJ11 )
