Description
SMT750RMI2U Features

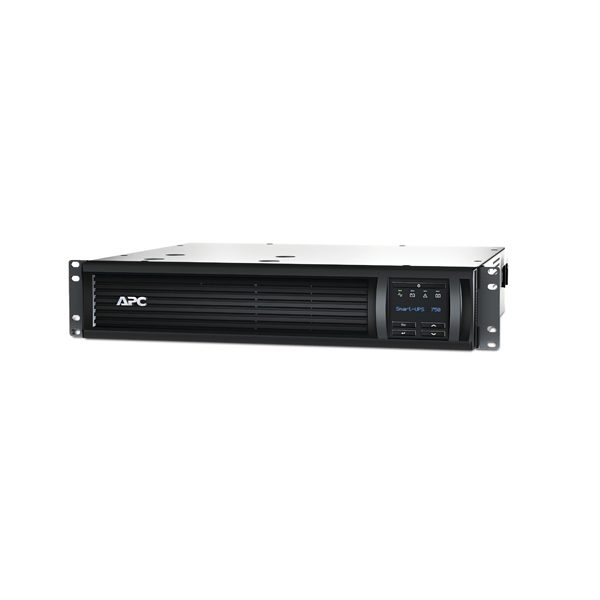

APC Smart-ups 750VA LCD RM 2U 230V
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency
Reduces utility costs, generates less heat.
- Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- SmartSlot
Customize UPS capabilities with management cards.
- Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
-
Smart-UPS Features & Benefits
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.Disconnected battery notification
Warns when a battery is not available to provide backup power.Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.Technical Specifications
Output
Output power capacity
500Watts / 750VAMax Configurable Power (Watts)
500Watts / 750VANominal Output Voltage
230VOutput Voltage Note
Configurable for 220 : 230 or 240 nominal output voltageOutput Voltage Distortion
Less than 5% at full loadOutput Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominalOther Output Voltages
220, 240
