Description
General

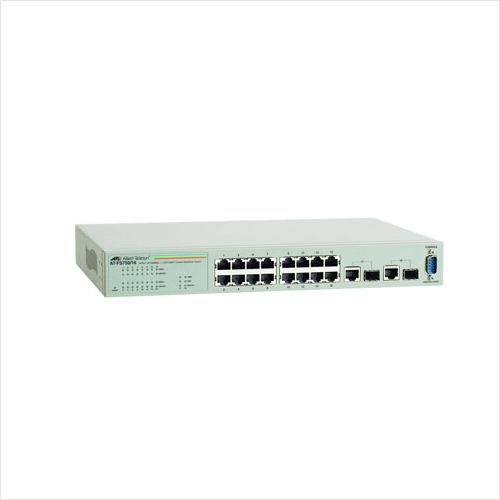

Device Type Switch – 16 ports – Managed
Enclosure Type Desktop
Subtype Fast Ethernet
Ports 16 x 10/100 + 2 x combo Gigabit SFP
MAC Address Table Size 8K entries
Remote Management Protocol HTTP
Features Flow control, trunking, auto-uplink (auto MDI/MDI-X), port mirroring
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x
RAM 512 KB
Expansion / Connectivity
Interfaces 16 x 100Base-TX – RJ-45 ¦ 1 x serial (RS-232) – DB-9 – management ¦ 2 x 1000Base-T – RJ-45 ¦ 2 x SFP (mini-GBIC)
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Mounting Kit Included
Rack Mounting Kit Included
Compliant Standards FCC Class A certified, TUV, C-Tick, EN 60950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A
Localisation United Kingdom
Dimensions & Weight
Width 35.2 cm
Depth 25.6 cm
Height 4.3 cm
Weight 2.4 kg
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 5 – 90%
