Description

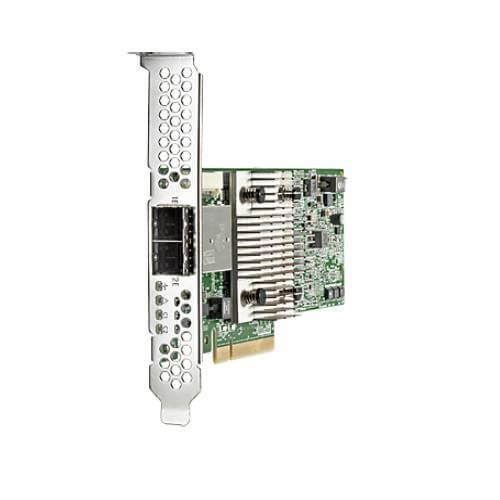

The HPE H241 Smart Host Bus Adapter comes in a low profile, PCIe3 x8 standup form factor that provides the Gen9 Servers a reliable, high performing SAS connectivity to the data in the direct attached or shared storage solutions.
When operating in simple RAID mode, it provides RAID 0, RAID 1, and RAID 5 with optional HPE Secure Encryption capabilities. Unlike the HPE Smart Array Controllers, the H241 does not offer any acceleration or support cache modules. The controller is also ideal for data backup to an external tape drives.
Specifications
| General Information | |
| Product Name | H241 Smart HBA |
| Manufacturer Part Number | 726911-B21 |
| Product Model | H241 |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 3.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 01
5 |
| Interfaces/Ports | |
| Total Number of SAS Ports | 2 |
| Number of SAS Ports (External) | 2 |
| Physical Characteristics | |
| Height | 0.9″ |
| Width | 2.1″ |
| Depth | 6.9″ |
| Form Factor | Plug-in Card |
| Other Information | |
| Card Height | Low-profile |
